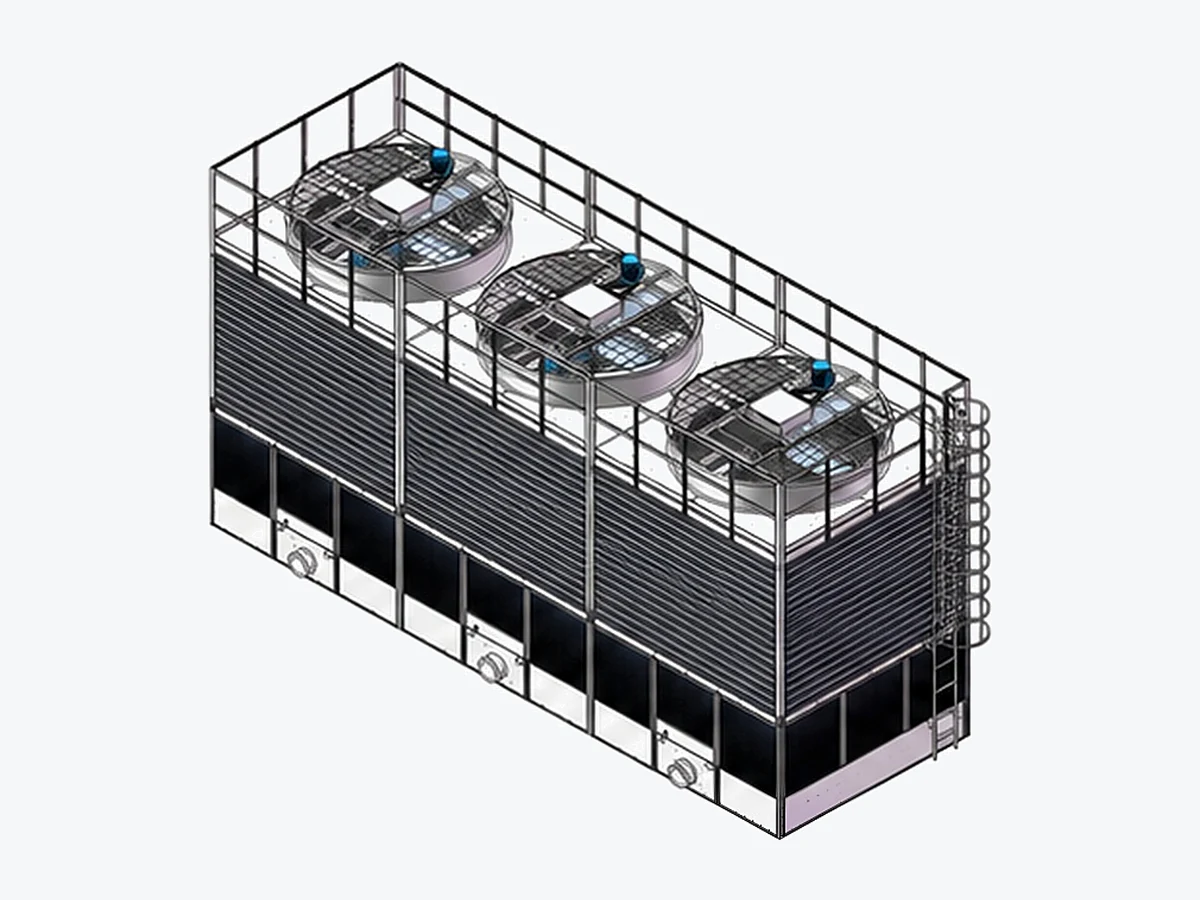

SCT counterflow open FRP cooling tower, multi-cell

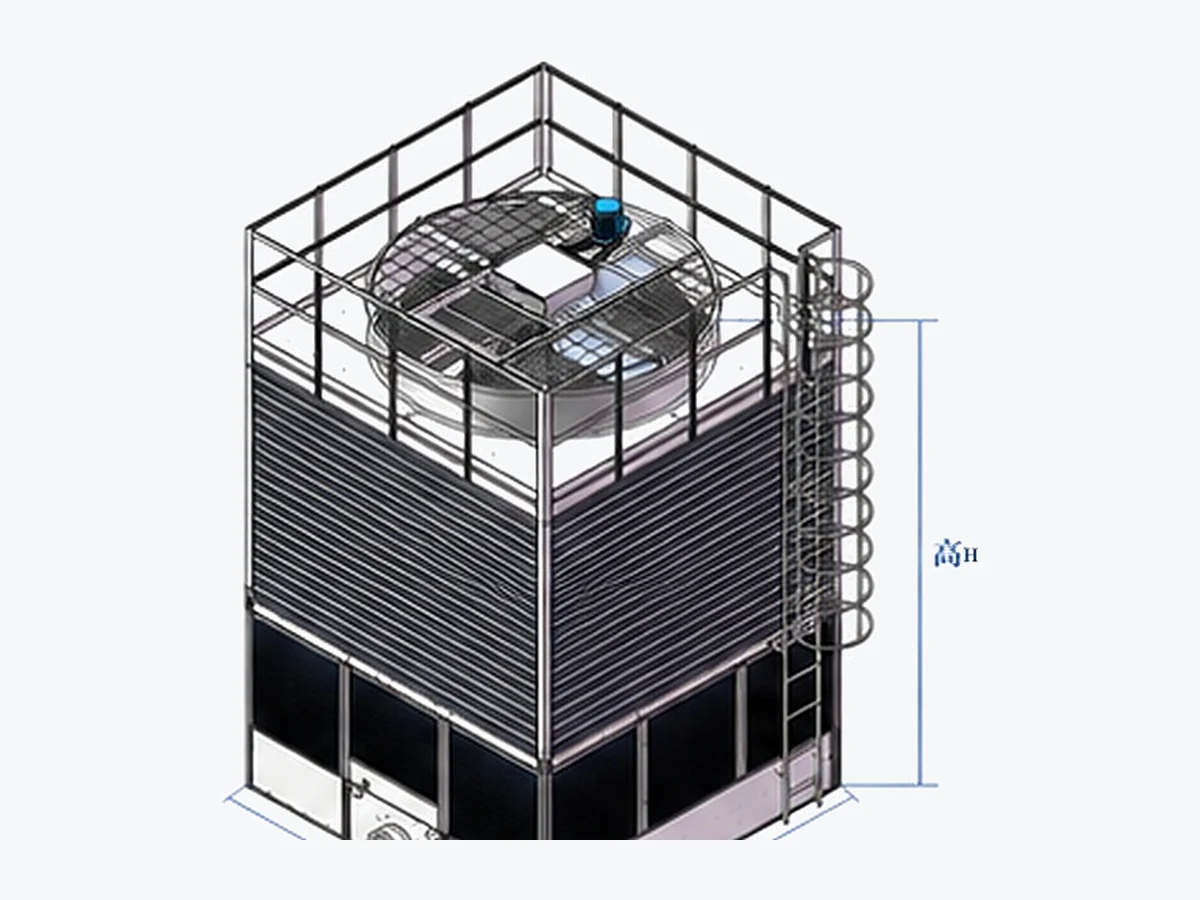

SCT counterflow open cooling tower single cell

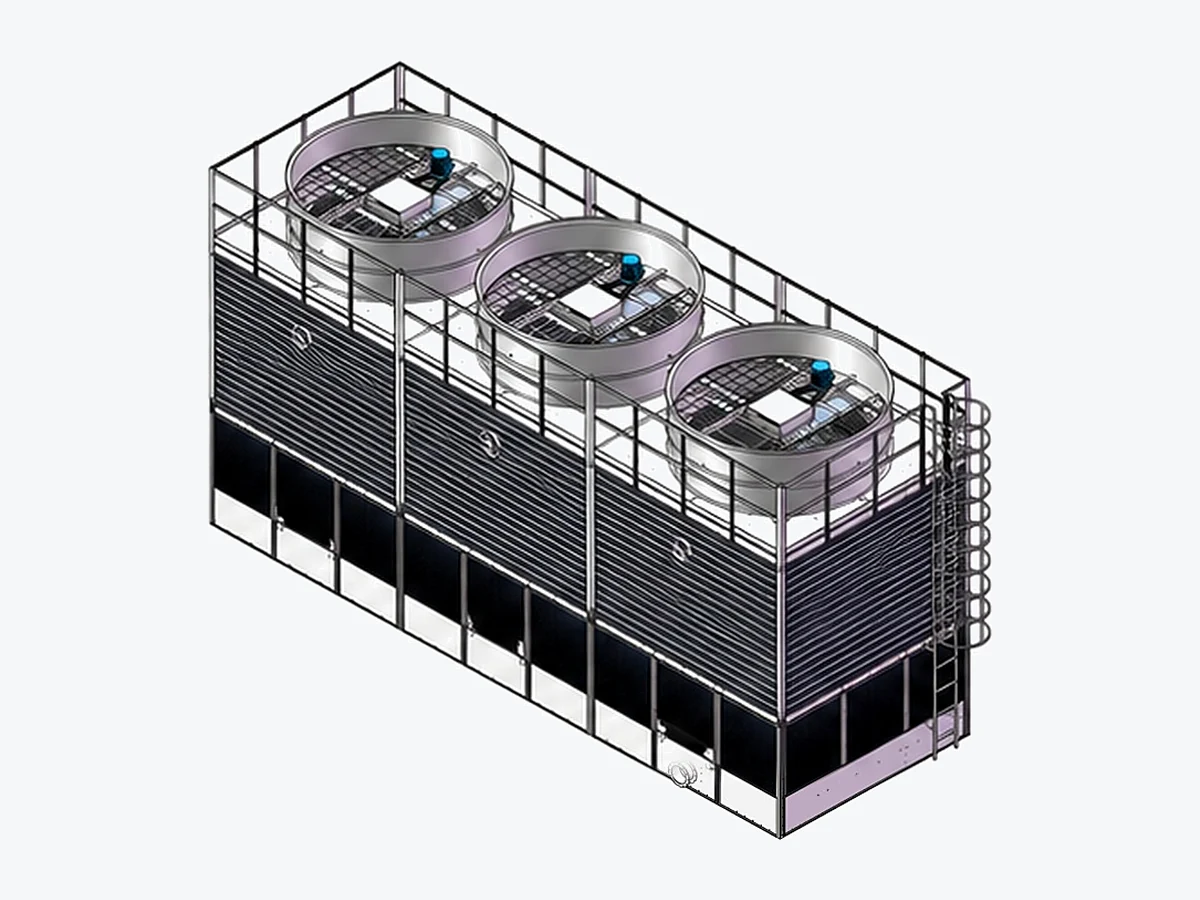

SCT counterflow open cooling tower Type II

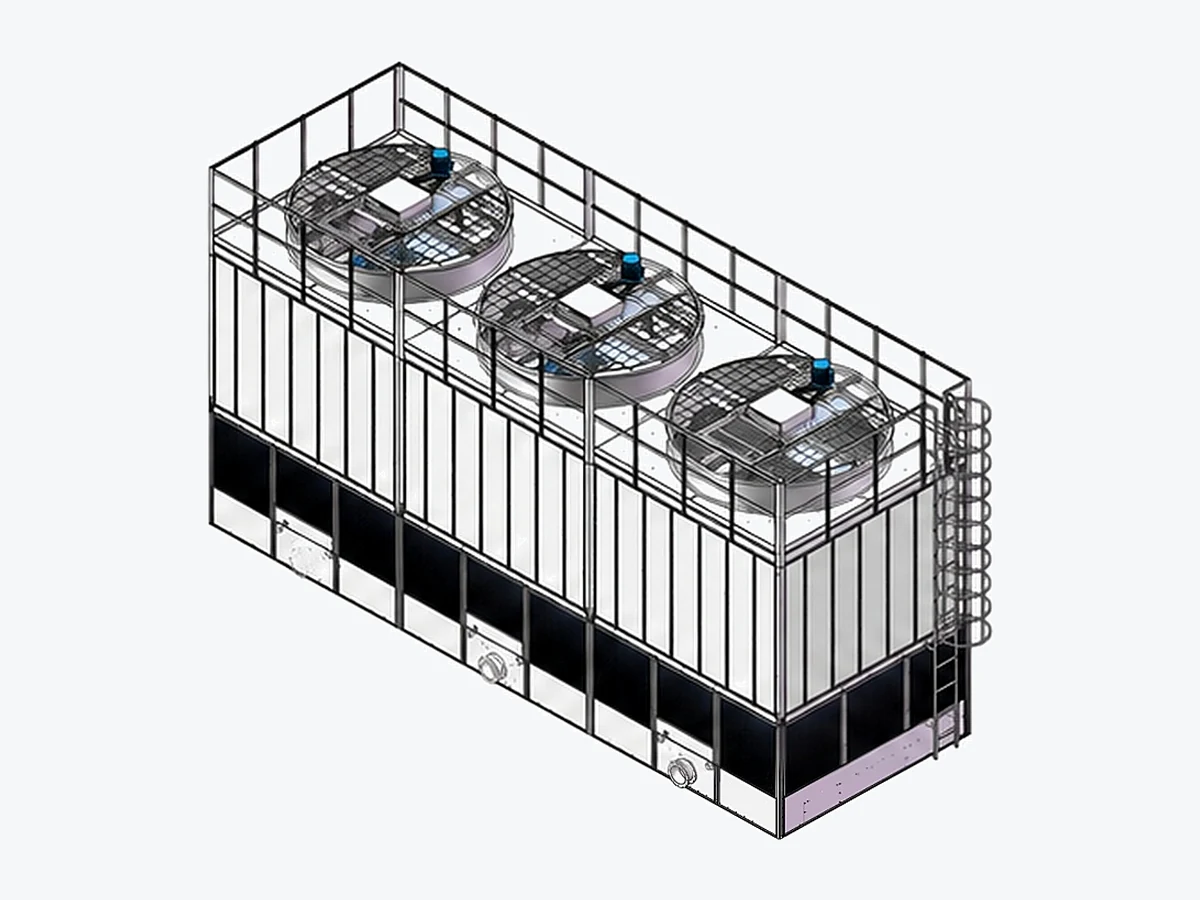

SCT counterflow open steel cooling tower

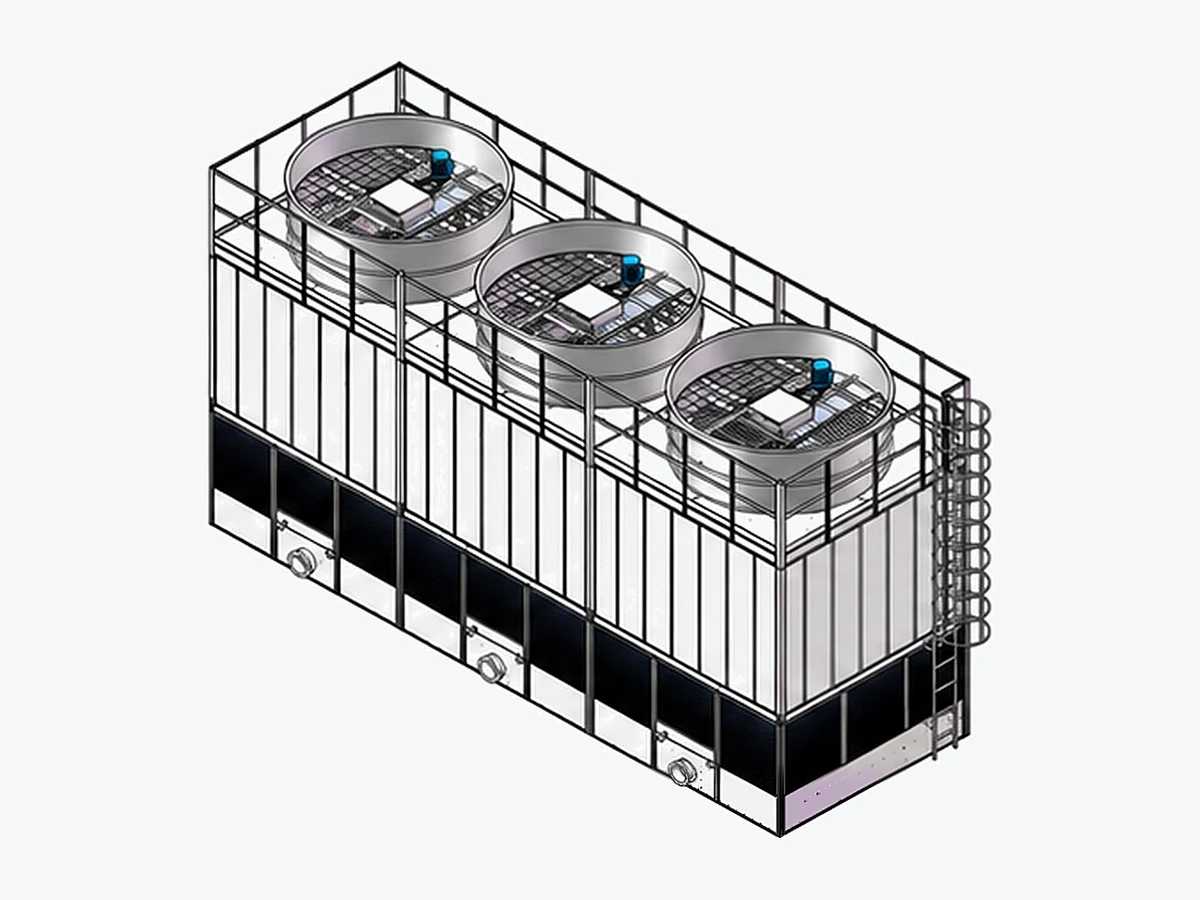

SCT counterflow open steel cooling tower Type II

SCT III FRP Counterflow Tower

Price by engineering quotation
Get a Quote

SCT III FRP counterflow tower for industrial heat rejection. Get a Quote

SKU: APEX-SCT-FRP-III
Category: , , ,

Description

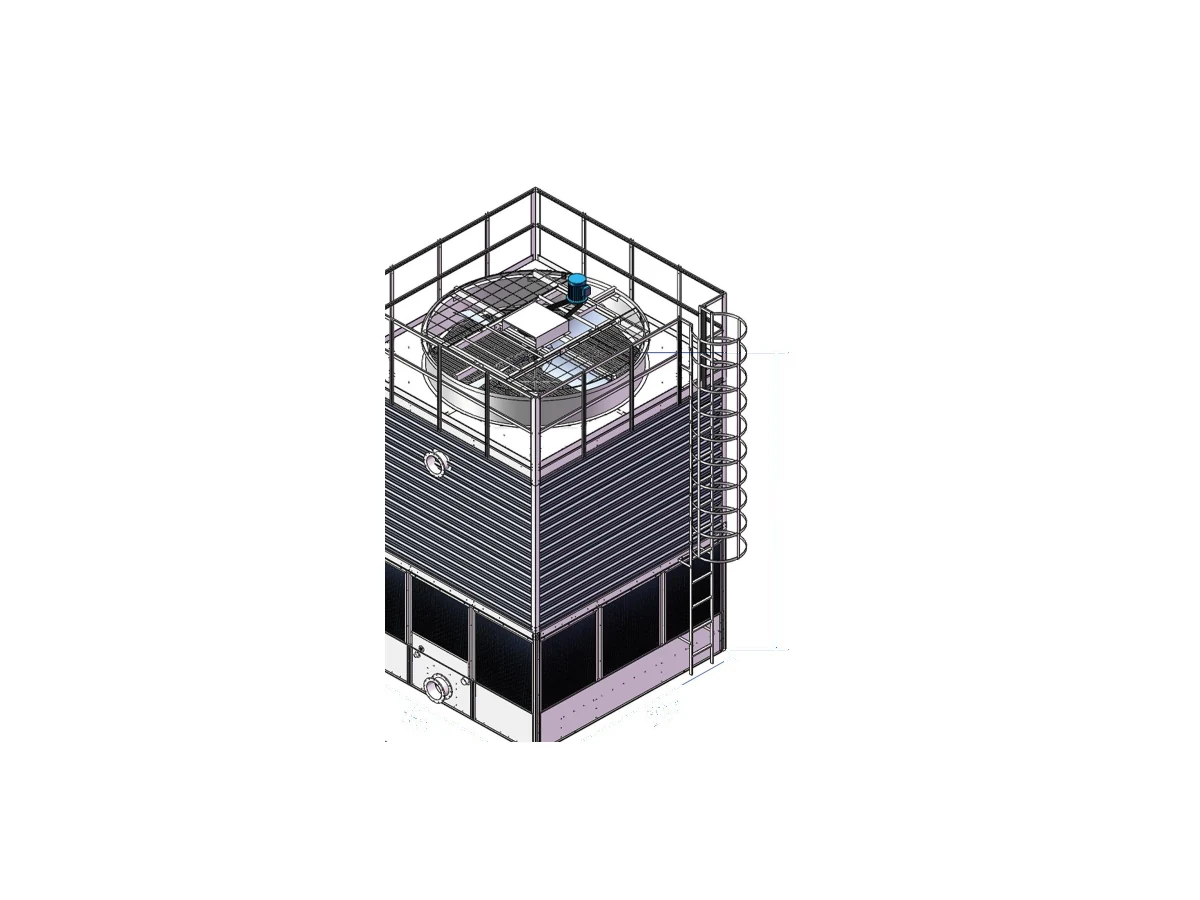

SCT Type III FRP Counterflow Open Circuit Cooling Tower is a counterflow, open circuit cooling tower family with corrosion-resistant FRP construction. It is configured against project water temperatures, wet-bulb conditions, water quality, noise limits and site constraints.

Get a Quote

Complete Model Specifications

All 120 catalog models below were transcribed from the Apex product brochure and assigned to this product family. Scroll horizontally on smaller screens. Final project selection remains subject to thermal and site verification.

120 catalog models in this product family.

Published catalog ratings at 37 °C hot water / 32 °C cold water / 28 °C wet-bulb, 99.4 kPa. Other duties require engineering re-selection.

Model Flow (m³/h) Head (kPa) Dimensions (mm) Fan Ø (mm) Motor (kW) Net weight (kg) Operating weight (kg) Inlet DN Outlet DN Overflow DN Drain DN Makeup DN
SCT-152011L 80 50 2050+140 × 2050+140 × 4050 1450 2.2 950 1950 125 125 50 50 25
SCT-152012L 88 50 2050+140 × 2050+140 × 4050 1450 3 965 1965 125 125 50 50 25
SCT-152013L 96 50 2050+140 × 2050+140 × 4050 1450 4 1010 2010 125 125 50 50 25
SCT-152014L 89 54 2050+140 × 2050+140 × 4450 1450 2.2 1030 2030 125 125 50 50 25
SCT-152015L 98 54 2050+140 × 2050+140 × 4450 1450 3 1045 2045 125 125 50 50 25
SCT-152016L 108 54 2050+140 × 2050+140 × 4450 1450 4 1090 2090 125 125 50 50 25
SCT-152111L 90 50 2100+140 × 2100+140 × 4050 1450 3 1000 2050 125 125 50 50 25
SCT-152112L 99 50 2100+140 × 2100+140 × 4050 1450 4 1040 2090 125 125 50 50 25
SCT-152113L 107 50 2100+140 × 2100+140 × 4050 1450 5.5 1045 2095 125 125 50 50 25
SCT-152114L 101 54 2100+140 × 2100+140 × 4450 1450 3 1080 2130 125 125 50 50 25
SCT-152115L 111 54 2100+140 × 2100+140 × 4450 1450 4 1120 2170 125 125 50 50 25
SCT-152116L 119 54 2100+140 × 2100+140 × 4450 1450 5.5 1125 2175 125 125 50 50 25
SCT-182211L 100 52 2250+140 × 2250+140 × 4070 1800 4 1050 2200 125 125 50 50 25
SCT-182212L 110 52 2250+140 × 2250+140 × 4070 1800 5.5 1070 2220 125 125 50 50 25
SCT-182213L 120 52 2250+140 × 2250+140 × 4070 1800 7.5 1080 2230 125 125 50 50 25
SCT-182214L 112 56 2250+140 × 2250+140 × 4470 1800 4 1140 2290 125 125 50 50 25
SCT-182215L 123 56 2250+140 × 2250+140 × 4470 1800 5.5 1160 2310 150 150 50 50 25
SCT-182216L 134 56 2250+140 × 2250+140 × 4470 1800 7.5 1170 2320 150 150 50 50 25
SCT-212511L 125 52 2500+140 × 2500+140 × 4170 2100 5.5 1250 3020 150 150 50 50 25
SCT-212512L 137 52 2500+140 × 2500+140 × 4170 2100 7.5 1260 3030 150 150 50 50 25
SCT-212513L 148 52 2500+140 × 2500+140 × 4170 2100 11 1310 3080 150 150 50 50 25
SCT-212514L 138 56 2500+140 × 2500+140 × 4570 2100 5.5 1350 3120 150 150 50 50 25
SCT-212515L 153 56 2500+140 × 2500+140 × 4570 2100 7.5 1360 3130 150 150 50 50 25
SCT-212516L 162 56 2500+140 × 2500+140 × 4570 2100 11 1410 3180 150 150 50 50 25
SCT-212711L 150 55 2750+140 × 2750+140 × 4370 2100 5.5 1420 3620 150 150 50 50 25
SCT-212712L 165 55 2750+140 × 2750+140 × 4370 2100 7.5 1430 3630 150 150 50 50 25
SCT-212713L 180 55 2750+140 × 2750+140 × 4370 2100 11 1480 3690 200 200 50 50 25
SCT-212714L 167 59 2750+140 × 2750+140 × 4770 2100 5.5 1520 3720 150 150 50 50 25
SCT-212715L 184 59 2750+140 × 2750+140 × 4770 2100 7.5 1530 3730 200 200 50 50 25
SCT-212716L 201 59 2750+140 × 2750+140 × 4770 2100 11 1580 3780 200 200 50 50 25
SCT-243011L 175 55 3000+140 × 3000+140 × 4370 2400 5.5 1600 4300 200 200 50 50 25
SCT-243012L 192 55 3000+140 × 3000+140 × 4370 2400 7.5 1610 4310 200 200 50 50 25
SCT-243013L 208 55 3000+140 × 3000+140 × 4370 2400 11 1660 4360 200 200 50 50 25
SCT-243014L 196 59 3000+140 × 3000+140 × 4770 2400 5.5 1700 4400 200 200 50 50 25
SCT-243015L 213 59 3000+140 × 3000+140 × 4770 2400 7.5 1710 4410 200 200 50 50 25
SCT-243016L 230 59 3000+140 × 3000+140 × 4770 2400 11 1760 4460 200 200 50 50 25
SCT-243211L 200 55 3250+140 × 3250+140 × 4370 2400 7.5 1750 4750 200 200 50 50 25
SCT-243212L 220 55 3250+140 × 3250+140 × 4370 2400 11 1790 4790 200 200 50 50 25
SCT-243213L 240 55 3250+140 × 3250+140 × 4370 2400 15 1810 4810 250 250 50 50 25
SCT-243214L 224 59 3250+140 × 3250+140 × 4770 2400 7.5 1870 4870 200 200 50 50 25
SCT-243215L 245 59 3250+140 × 3250+140 × 4770 2400 11 1910 4910 250 250 50 50 25
SCT-243216L 265 59 3250+140 × 3250+140 × 4770 2400 15 1930 4930 250 250 50 50 25
SCT-263411L 225 55 3400+140 × 3400+140 × 4370 2600 7.5 1900 5300 200 200 50 50 25
SCT-263412L 247 55 3400+140 × 3400+140 × 4370 2600 11 1940 5340 250 250 50 50 25
SCT-263413L 270 55 3400+140 × 3400+140 × 4370 2600 15 1960 5360 250 250 50 50 25
SCT-263414L 252 59 3400+140 × 3400+140 × 4770 2600 7.5 2020 5420 250 250 50 50 25
SCT-263415L 273 59 3400+140 × 3400+140 × 4770 2600 11 2060 5460 250 250 50 50 25
SCT-263416L 302 59 3400+140 × 3400+140 × 4770 2600 15 2080 5480 250 250 50 50 25
SCT-283511L 250 56 3500+140 × 3500+140 × 5070 2800 7.5 2150 5800 250 250 80 80 40
SCT-283512L 275 56 3500+140 × 3500+140 × 5070 2800 11 2190 5840 250 250 80 80 40
SCT-283513L 295 56 3500+140 × 3500+140 × 5070 2800 15 2210 5860 250 250 80 80 40
SCT-283514L 280 62 3500+140 × 3500+140 × 5670 2800 7.5 2270 5920 250 250 80 80 40
SCT-283515L 305 62 3500+140 × 3500+140 × 5670 2800 11 2310 5960 250 250 80 80 40
SCT-283516L 325 62 3500+140 × 3500+140 × 5670 2800 15 2330 5980 250 250 80 80 40
SCT-304011L 300 56 4000+140 × 4000+140 × 5170 3000 11 2620 7420 250 250 80 80 40
SCT-304012L 330 56 4000+140 × 4000+140 × 5170 3000 15 2660 7460 250 250 80 80 40
SCT-304013L 360 56 4000+140 × 4000+140 × 5170 3000 18.5 2700 7500 250 250 80 80 40
SCT-304014L 335 62 4000+140 × 4000+140 × 5770 3000 11 2820 7620 250 250 80 80 40
SCT-304015L 365 62 4000+140 × 4000+140 × 5770 3000 15 2860 7660 250 250 80 80 40
SCT-304016L 395 62 4000+140 × 4000+140 × 5770 3000 18.5 2900 7800 250 250 80 80 40
SCT-324211L 350 60 4250+140 × 4250+140 × 5370 3200 11 2950 8250 250 250 80 80 40
SCT-324212L 385 60 4250+140 × 4250+140 × 5370 3200 15 2990 8290 250 250 80 80 40
SCT-324213L 420 60 4250+140 × 4250+140 × 5370 3200 18.5 3030 8330 250 250 80 80 40
SCT-324214L 390 66 4250+140 × 4250+140 × 5940 3200 11 3150 8450 250 250 80 80 40
SCT-324215L 430 66 4250+140 × 4250+140 × 5940 3200 15 3190 8490 250 250 80 80 40
SCT-324216L 465 66 4250+140 × 4250+140 × 5940 3200 18.5 3230 8530 300 300 80 80 40
SCT-324511L 380 60 4500+140 × 4500+140 × 5370 3200 11 3280 9280 250 250 80 80 40
SCT-324512L 418 60 4500+140 × 4500+140 × 5370 3200 15 3320 9320 250 250 80 80 40
SCT-324513L 455 60 4500+140 × 4500+140 × 5370 3200 18.5 3360 9360 300 300 80 80 40
SCT-324514L 425 66 4500+140 × 4500+140 × 5970 3200 11 3500 9500 250 250 80 80 40
SCT-324515L 468 66 4500+140 × 4500+140 × 5970 3200 15 3540 9540 300 300 80 80 40
SCT-324516L 508 66 4500+140 × 4500+140 × 5970 3200 18.5 3580 9580 300 300 80 80 40
SCT-345011L 400 60 5000+140 × 5000+140 × 5370 3400 15 3520 11020 250 250 80 80 40
SCT-345012L 440 60 5000+140 × 5000+140 × 5370 3400 18.5 3560 11060 250 250 80 80 40
SCT-345013L 480 60 5000+140 × 5000+140 × 5370 3400 22 3570 11070 300 300 80 80 40
SCT-345014L 445 66 5000+140 × 5000+140 × 5970 3400 15 3770 11270 250 250 80 80 40
SCT-345015L 490 66 5000+140 × 5000+140 × 5970 3400 18.5 3810 11310 300 300 80 80 40
SCT-345016L 535 66 5000+140 × 5000+140 × 5970 3400 22 3820 11320 300 300 80 80 40
SCT-375111L 450 60 5100+140 × 5100+140 × 5520 3700 15 3820 12800 300 300 80 80 50
SCT-375112L 495 60 5100+140 × 5100+140 × 5520 3700 18.5 3860 12840 300 300 80 80 50
SCT-375113L 540 60 5100+140 × 5100+140 × 5520 3700 22 3870 12850 300 300 80 80 50
SCT-375114L 505 66 5100+140 × 5100+140 × 6120 3700 15 4070 13050 300 300 80 80 50
SCT-375115L 553 66 5100+140 × 5100+140 × 6120 3700 18.5 4110 13090 300 300 80 80 50
SCT-375116L 603 66 5100+140 × 5100+140 × 6120 3700 22 4120 13100 300 300 80 80 50
SCT-375211L 500 63 5250+140 × 5250+140 × 5720 3700 15 4150 13550 300 300 80 80 50
SCT-375212L 550 63 5250+140 × 5250+140 × 5720 3700 18.5 4190 13590 300 300 80 80 50
SCT-375213L 595 63 5250+140 × 5250+140 × 5720 3700 22 4200 13600 300 300 80 80 50
SCT-375214L 560 69 5250+140 × 5250+140 × 6320 3700 15 4420 13820 300 300 80 80 50
SCT-375215L 615 69 5250+140 × 5250+140 × 6320 3700 18.5 4460 13860 300 300 80 80 50
SCT-375216L 665 69 5250+140 × 5250+140 × 6320 3700 22 4470 13870 300 300 80 80 50
SCT-405511L 600 68 5500+140 × 5500+140 × 6750 4000 18.5 4680 15180 300 300 80 80 50
SCT-405512L 660 68 5500+140 × 5500+140 × 6750 4000 22 4695 15195 300 300 80 80 50
SCT-405513L 720 68 5500+140 × 5500+140 × 6750 4000 30 4730 15230 350 350 80 80 50
SCT-405514L 670 73 5500+140 × 5500+140 × 7350 4000 18.5 4940 15440 300 300 80 80 50
SCT-405515L 735 73 5500+140 × 5500+140 × 7350 4000 22 4955 15455 350 350 80 80 50
SCT-405516L 805 73 5500+140 × 5500+140 × 7350 4000 30 4990 15490 350 350 80 80 50
SCT-426011L 700 68 6000+140 × 6000+140 × 6750 4200 22 5640 18240 350 350 80 80 50
SCT-426012L 770 68 6000+140 × 6000+140 × 6750 4200 30 5680 18280 350 350 80 80 50
SCT-426013L 840 68 6000+140 × 6000+140 × 6750 4200 45 5840 18440 400 400 80 80 50
SCT-426014L 780 73 6000+140 × 6000+140 × 7350 4200 22 5940 18540 350 350 80 80 50
SCT-426015L 860 73 6000+140 × 6000+140 × 7350 4200 30 5980 18580 400 400 80 80 50
SCT-426016L 935 73 6000+140 × 6000+140 × 7350 4200 45 6140 18740 400 400 80 80 50
SCT-426511L 800 70 6500+140 × 6500+140 × 6950 4200 22 6520 21020 350 350 80 80 50
SCT-426512L 880 70 6500+140 × 6500+140 × 6950 4200 30 6560 21060 400 400 80 80 50
SCT-426513L 960 70 6500+140 × 6500+140 × 6950 4200 45 6720 21220 400 400 80 80 50
SCT-426514L 895 75 6500+140 × 6500+140 × 7550 4200 22 6840 21340 400 400 80 80 50
SCT-426515L 985 75 6500+140 × 6500+140 × 7550 4200 30 6880 21380 400 400 80 80 50
SCT-426516L 1070 75 6500+140 × 6500+140 × 7550 4200 45 7080 21540 400 400 80 80 50
SCT-457011L 900 72 7000+140 × 7000+140 × 6950 4500 30 7550 24550 300×2 300×2 80×2 80×2 50×2
SCT-457012L 990 72 7000+140 × 7000+140 × 6950 4500 45 7700 24700 300×2 300×2 80×2 80×2 50×2
SCT-457013L 1080 72 7000+140 × 7000+140 × 6950 4500 55 7860 24860 300×2 300×2 80×2 80×2 50×2
SCT-457014L 1005 77 7000+140 × 7000+140 × 7550 4500 30 7900 24900 300×2 300×2 80×2 80×2 50×2
SCT-457015L 1105 77 7000+140 × 7000+140 × 7550 4500 45 8050 25050 300×2 300×2 80×2 80×2 50×2
SCT-457016L 1205 77 7000+140 × 7000+140 × 7550 4500 55 8210 25210 300×2 300×2 80×2 80×2 50×2
SCT-457511L 1000 72 7500+140 × 7500+140 × 6950 4500 30 8200 27700 300×2 300×2 80×2 80×2 50×2
SCT-457512L 1100 72 7500+140 × 7500+140 × 6950 4500 45 8350 27850 300×2 300×2 80×2 80×2 50×2
SCT-457513L 1200 72 7500+140 × 7500+140 × 6950 4500 55 8510 28010 300×2 300×2 80×2 80×2 50×2
SCT-457514L 1120 77 7500+140 × 7500+140 × 7550 4500 30 8600 28100 300×2 300×2 80×2 80×2 50×2
SCT-457515L 1230 77 7500+140 × 7500+140 × 7550 4500 45 8750 28250 300×2 300×2 80×2 80×2 50×2
SCT-457516L 1340 77 7500+140 × 7500+140 × 7550 4500 55 8910 28410 300×2 300×2 80×2 80×2 50×2

Sound and drift data available on request for the selected model.

Published Selection Basis

  • Inlet water temperature: 37°C
  • Outlet water temperature: 32°C
  • Wet-bulb temperature: 28°C
  • Atmospheric pressure: 99,400 Pa
  • Water temperature drop: 5°C

Engineering Information Required

Send design flow, entering and leaving water temperatures, design wet-bulb temperature, installation altitude, circulating-water quality, noise target, power supply and footprint limits. Apex will confirm the final model, cell quantity, materials, motor configuration, piping and delivery scope.

Get a Quote

Our commitments

Reply within 24 hours; quotation within 2–3 working days.

Warranty: 16 months from shipment or 12 months from commissioning, whichever comes first.

Third-party inspection and factory witness testing welcome.

Designed per CTI methods; CTI-certified manufacturing available on request (project-specific documentation).

Frequently Asked Questions

Are your towers CTI certified?

Our towers are designed per CTI methods. If your specification requires CTI-certified equipment, tell us at RFQ stage: for eligible series we provide project-specific CTI documentation from the manufacturing partner with the quotation.

What warranty do you offer?

16 months from shipment or 12 months from commissioning, whichever comes first.

Can we inspect before shipment?

Yes. Third-party inspection and factory witness testing are welcome, by appointment.

How fast will we get a quotation?

We reply within 24 hours and send a quotation within 2–3 working days once we have your duty data.

Get a Quote

Additional information

Series

SCT
Circuit

Open circuit
Flow arrangement

Counterflow
Construction

FRP
