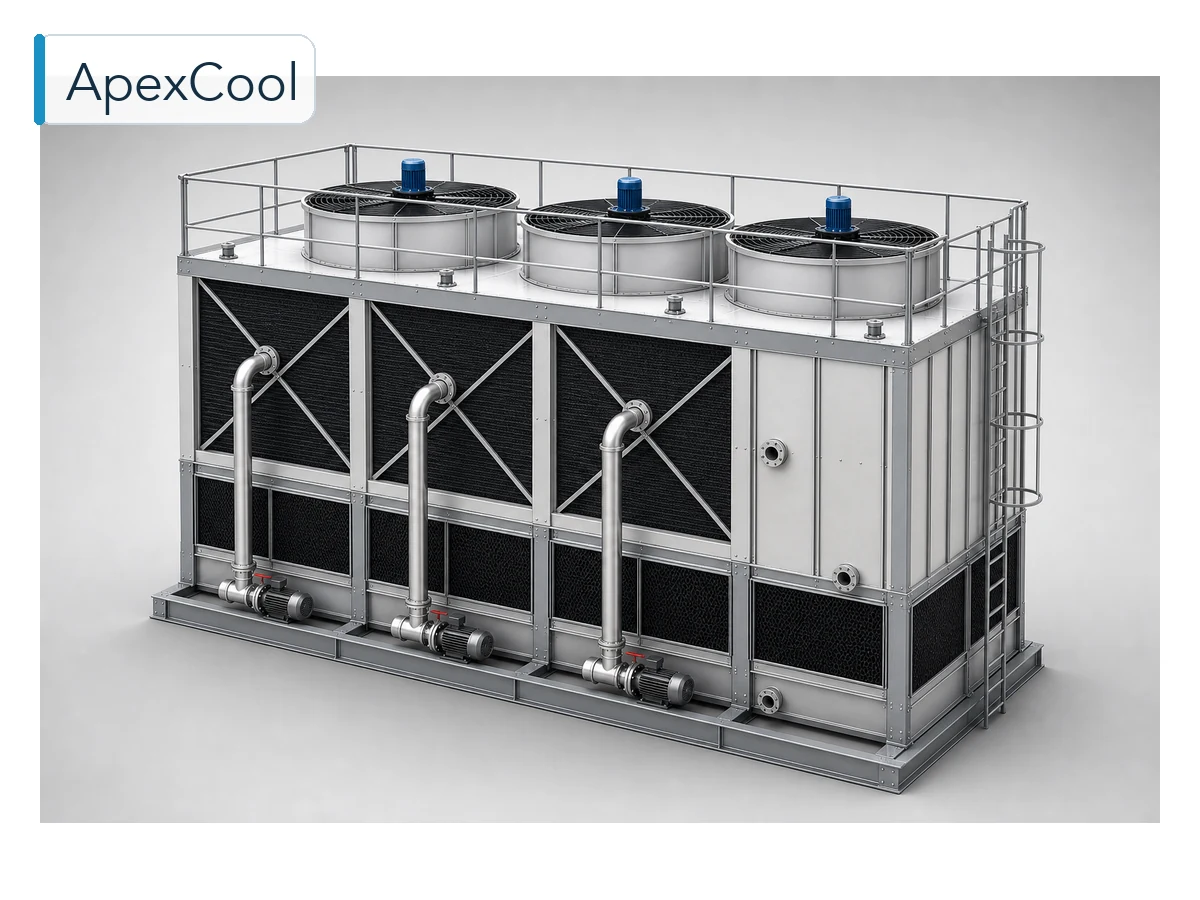

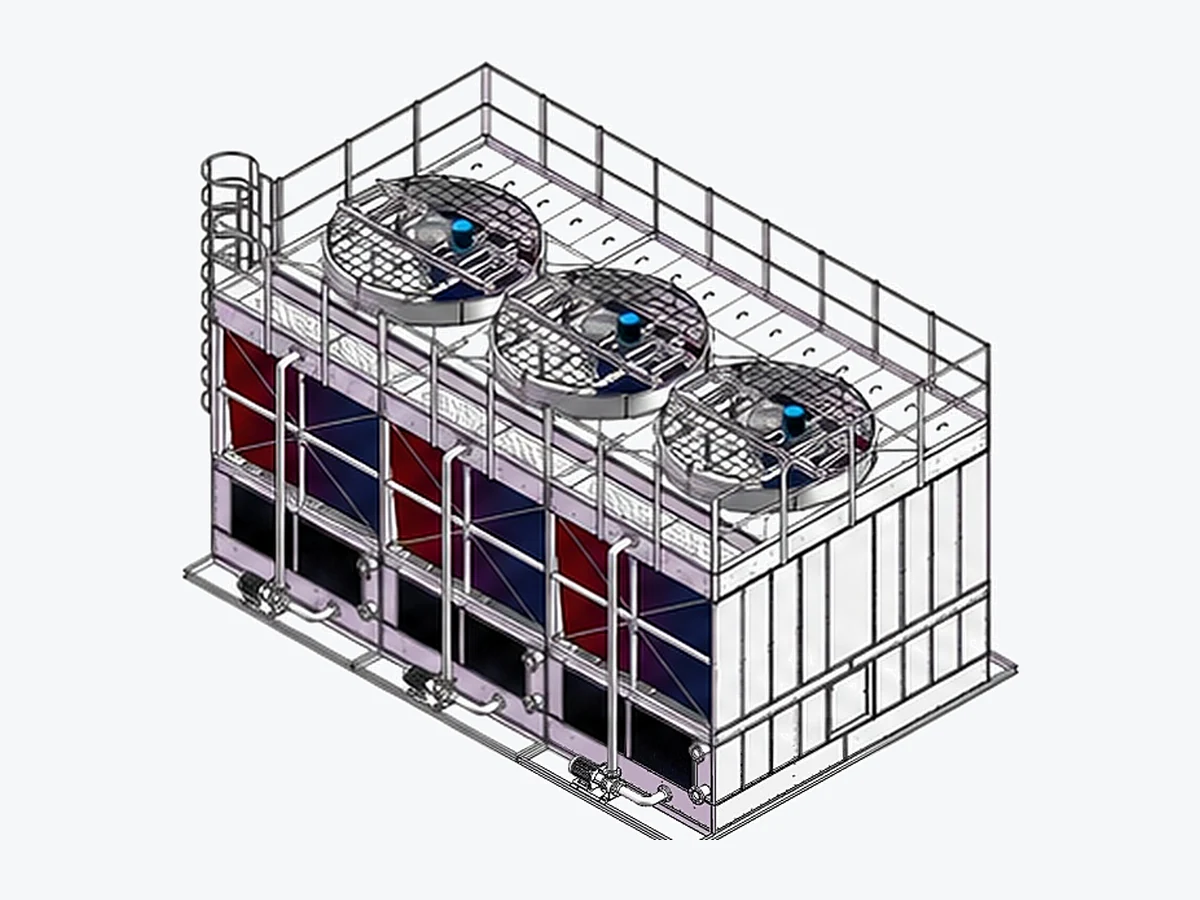

SNC crossflow closed circuit cooling tower, multi-cell

SNC Closed-Circuit Tower

Price by engineering quotation
Get a Quote

SNC closed-circuit tower for process cooling duty review. Get a Quote

SKU: APEX-SNC-CLOSED
Category: , , ,

Description

SNC Crossflow Closed Circuit Cooling Tower is a crossflow, closed circuit cooling tower family with industrial steel construction. It is configured against project water temperatures, wet-bulb conditions, water quality, noise limits and site constraints.

Get a Quote

Complete Model Specifications

All 51 catalog models below were transcribed from the Apex product brochure and assigned to this product family. Scroll horizontally on smaller screens. Final project selection remains subject to thermal and site verification.

51 catalog models in this product family.

Published catalog ratings at 37 °C hot water / 32 °C cold water / 28 °C wet-bulb, 99.4 kPa. Other duties require engineering re-selection.

Model Flow (m³/h) Head (kPa) Dimensions (mm) Fan Ø (mm) Motor (kW) Spray pump (kW) Net weight (kg) Operating weight (kg) Inlet DN Outlet DN Overflow DN Drain DN Makeup DN
SNC-152011 10 85 1500 × 2000+300 × 2930 700 0.75 0.55 886 1917 40 40 25 25 25
SNC-152012 15 85 1500 × 2000+300 × 2930 800 1.1 0.55 930 1977 50 50 25 25 25
SNC-152013 20 85 1500 × 2000+300 × 2930 900 1.5 0.55 979 2043 50 50 25 25 25
SNC-152014 25 90 1500 × 2000+300 × 3090 900 2.2 0.55 1004 2068 50 50 25 25 25
SNC-152015 30 90 1500 × 2000+300 × 3090 1000 2.2 0.55 1027 2114 80 80 25 25 25
SNC-152016 35 90 1500 × 2000+300 × 3090 1000 3 0.55 1069 2179 80 80 25 25 25
SNC-182511 40 85 1850 × 2500+400 × 3580 1200 3 0.75 1499 3118 80 80 40 40 25
SNC-182512 50 85 1850 × 2500+400 × 3580 1350 3 1.1 1649 3298 100 100 40 40 25
SNC-182513 65 85 1850 × 2500+400 × 3580 1350 4 1.1 1689 3338 100 100 40 40 25
SNC-182514 60 90 1850 × 2500+400 × 4110 1450 2.2 1.5 1727 3394 100 100 40 40 25
SNC-182515 70 90 1850 × 2500+400 × 4110 1450 4 1.5 1826 3533 100 100 40 40 25
SNC-182516 75 90 1850 × 2500+400 × 4110 1450 5.5 2.2 1906 3613 100 100 40 40 25
SNC-217211 65 92 2150 × 2700+500 × 4110 1450 2.2 1.5 2030 4116 100 100 40 40 25
SNC-217212 70 92 2150 × 2700+500 × 4110 1450 4 1.5 2134 4264 100 100 40 40 25
SNC-217213 85 92 2150 × 2700+500 × 4110 1450 5.5 2.2 2154 4284 125 125 40 40 25
SNC-217214 80 105 2150 × 2700+500 × 4750 1800 3 2.2 2194 4324 125 125 40 40 25
SNC-217215 90 105 2150 × 2700+500 × 4750 1800 4 2.2 2254 13840 125 125 40 40 25
SNC-217216 100 105 2150 × 2700+500 × 4750 1800 5.5 2.2 2300 4456 125 125 40 40 25
SNC-223911 90 92 2200 × 3900+1000 × 4450 1800 3 1.1×2 2090 4512 80×2 80×2 40 40 25
SNC-223912 100 92 2200 × 3900+1000 × 4450 1800 4 1.1×2 2150 4572 80×2 80×2 40 40 25
SNC-223913 110 92 2200 × 3900+1000 × 4450 1800 5.5 1.5×2 2250 4742 100×2 100×2 40 40 25
SNC-254311 105 92 2500 × 4300+1000 × 4450 2100 4 1.1×2 2713 5727 100×2 100×2 40 40 25
SNC-254312 115 92 2500 × 4300+1000 × 4450 2100 5.5 1.5×2 2823 5918 100×2 100×2 40 40 25
SNC-254313 125 92 2500 × 4300+1000 × 4450 2100 7.5 1.5×2 2843 5938 100×2 100×2 40 40 25
SNC-284611 135 92 2800 × 4600+1000 × 4450 2400 5.5 1.5×2 3382 7136 100×2 100×2 40 40 25
SNC-284612 145 92 2800 × 4600+1000 × 4450 2400 7.5 1.5×2 3613 7488 100×2 100×2 40 40 25
SNC-284613 160 92 2800 × 4600+1000 × 4450 2400 11 2.2×2 3673 7548 125×2 125×2 50 50 40
SNC-304811 150 92 3000 × 4800+1000 × 4700 2600 7.5 2.2×2 3998 8189 100×2 100×2 50 50 40
SNC-304812 165 92 3000 × 4800+1000 × 4700 2600 11 2.2×2 4188 8509 125×2 125×2 50 50 40
SNC-304813 175 92 3000 × 4800+1000 × 4700 2600 15 2.2×2 4228 8549 125×2 125×2 50 50 40
SNC-325411 180 85 3200 × 5400+1000 × 5300 2800 7.5 2.2×2 5214 10699 125×2 125×2 50 50 40
SNC-325412 200 85 3200 × 5400+1000 × 5300 2800 11 2.2×2 5274 10759 150×2 150×2 50 50 40
SNC-325413 210 85 3200 × 5400+1000 × 5300 2800 15 2.2×2 5470 11112 150×2 150×2 50 50 40
SNC-345611 220 90 3400 × 5600+1000 × 5300 3000 11 2.2×2 5767 11807 150×2 150×2 50 50 40
SNC-345612 240 90 3400 × 5600+1000 × 5300 3000 15 2.2×2 5992 12217 150×2 150×2 50 50 40
SNC-345613 260 90 3400 × 5600+1000 × 5300 3000 18.5 2.2×2 6052 12277 150×2 150×2 50 50 40
SNC-365811 300 95 3600 × 5800+1000 × 5300 3200 11 3×2 6432 13321 150×2 150×2 80 50 50
SNC-365812 330 95 3600 × 5800+1000 × 5500 3200 15 3×2 6644 13745 150×2 150×2 80 50 50
SNC-365813 360 95 3600 × 5800+1000 × 5500 3200 18.5 4×2 6734 13835 125×4 125×4 80 50 50
SNC-386311 375 105 3800 × 6300+1000 × 6000 3400 15 5.5×2 7611 15776 125×4 125×4 80 50 50
SNC-386312 420 105 3800 × 6300+1000 × 6200 3400 18.5 5.5×2 921 16365 125×4 125×4 80 50 50
SNC-386313 450 105 3800 × 6300+1000 × 6200 3400 22 5.5×2 971 16415 125×4 125×4 80 50 50
SNC-406611 500 90 4000 × 6600+1000 × 6200 3700 15 7.5×2 8811 17988 150×4 150×4 80 80 50
SNC-406612 550 90 4000 × 6600+1000 × 6400 3700 18.5 7.5×2 9145 18616 150×4 150×4 80 80 50
SNC-406613 600 90 4000 × 6600+1000 × 6400 3700 22 11×2 9195 18666 150×4 150×4 80 80 50
SNC-457111 580 90 4500 × 7100+1000 × 6400 4000 18.5 7.5×2 10691 21931 150×4 150×4 80 80 50
SNC-457112 640 90 4500 × 7100+1000 × 6600 4000 22 11×2 11028 22601 150×4 150×4 100 80 50
SNC-457113 700 90 4500 × 7100+1000 × 6600 4000 30 11×2 11118 22691 200×4 200×4 100 80 50
SNC-507311 720 105 5000 × 7300+1000 × 6400 4200 22 11×2 12411 25224 200×4 200×4 100 80 50
SNC-507312 800 105 5000 × 7300+1000 × 6600 4200 30 11×2 12822 26006 200×4 200×4 100 80 50
SNC-507313 850 105 5000 × 7300+1000 × 6600 4200 37 11×2 12892 26076 200×4 200×4 100 80 50

Sound and drift data available on request for the selected model.

Published Selection Basis

  • Inlet water temperature: 37°C
  • Outlet water temperature: 32°C
  • Wet-bulb temperature: 28°C
  • Atmospheric pressure: 99,400 Pa
  • Water temperature drop: 5°C

Engineering Information Required

Send design flow, entering and leaving water temperatures, design wet-bulb temperature, installation altitude, circulating-water quality, noise target, power supply and footprint limits. Apex will confirm the final model, cell quantity, materials, motor configuration, piping and delivery scope.

Get a Quote

Process Cooling Fit

For process cooling applications, the SNC crossflow closed-circuit cooling tower should be reviewed against process-fluid cleanliness, coil material, spray-water quality, service access, footprint and the required inlet and outlet temperatures. Apex can use these inputs to confirm whether the SNC configuration is suitable before preparing a project quotation.

Our commitments

Reply within 24 hours; quotation within 2–3 working days.

Warranty: 16 months from shipment or 12 months from commissioning, whichever comes first.

Third-party inspection and factory witness testing welcome.

Designed per CTI methods; CTI-certified manufacturing available on request (project-specific documentation).

Frequently Asked Questions

Are your towers CTI certified?

Our towers are designed per CTI methods. If your specification requires CTI-certified equipment, tell us at RFQ stage: for eligible series we provide project-specific CTI documentation from the manufacturing partner with the quotation.

What warranty do you offer?

16 months from shipment or 12 months from commissioning, whichever comes first.

Can we inspect before shipment?

Yes. Third-party inspection and factory witness testing are welcome, by appointment.

How fast will we get a quotation?

We reply within 24 hours and send a quotation within 2–3 working days once we have your duty data.

Delivery Commitments

  • 16-Month Warranty
  • Quote in 2-3 Working Days
  • Reply Within 24 Hours
  • Third-Party Inspection
  • Factory Witness Welcome

Send Engineering Inquiry

Include process fluid, flow, temperatures, wet-bulb and project country for a faster SNC engineering review.

Get a Quote
Get a Quote

Additional information

Series

SNC
Circuit

Closed circuit
Flow arrangement

Crossflow
Construction

Steel
