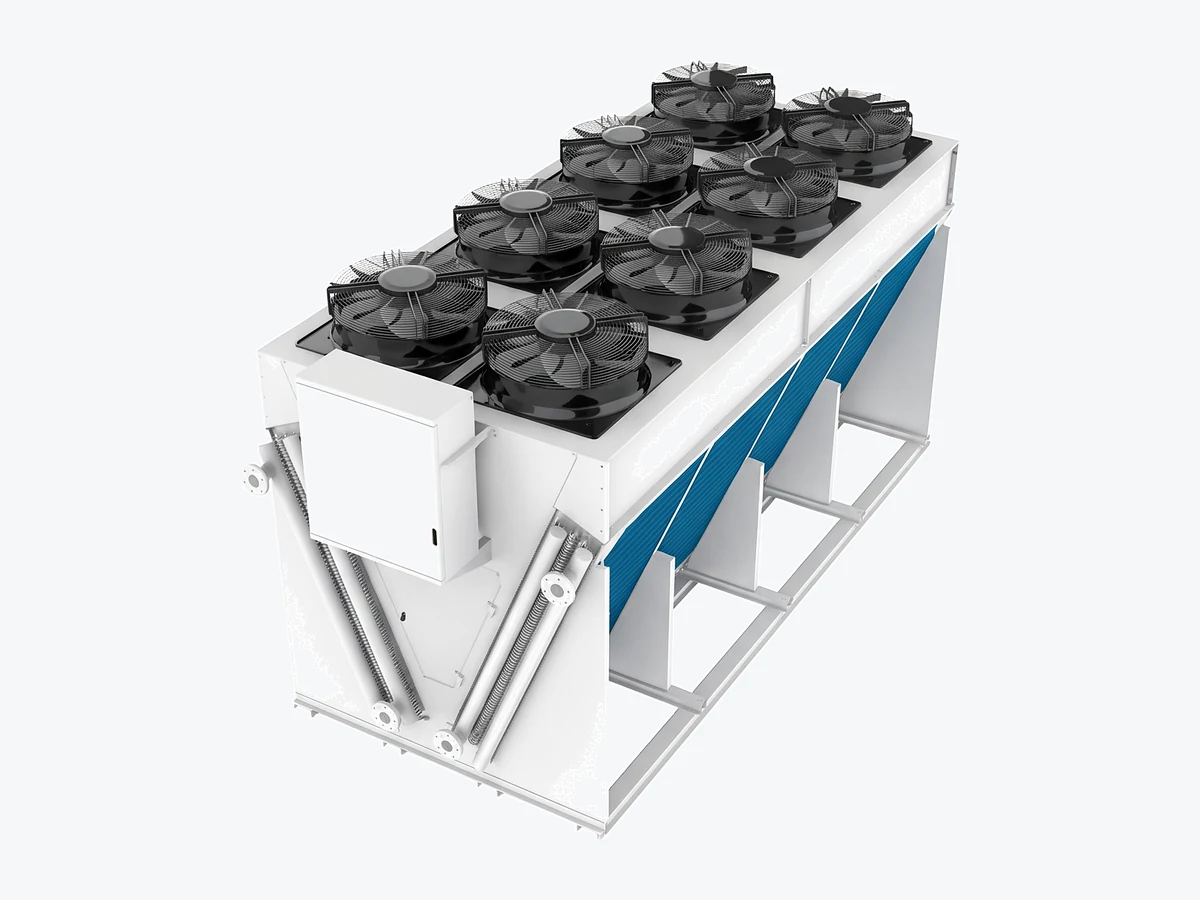

SDV V-Type Dry Cooler

The SDV packs two inclined finned coils in a V around a row of Ø910 mm EC fans. It is the workhorse for closed loops that run 10 K or more above ambient: process water, generator jackets, data-center free-cooling and chiller heat rejection — with zero water consumption.

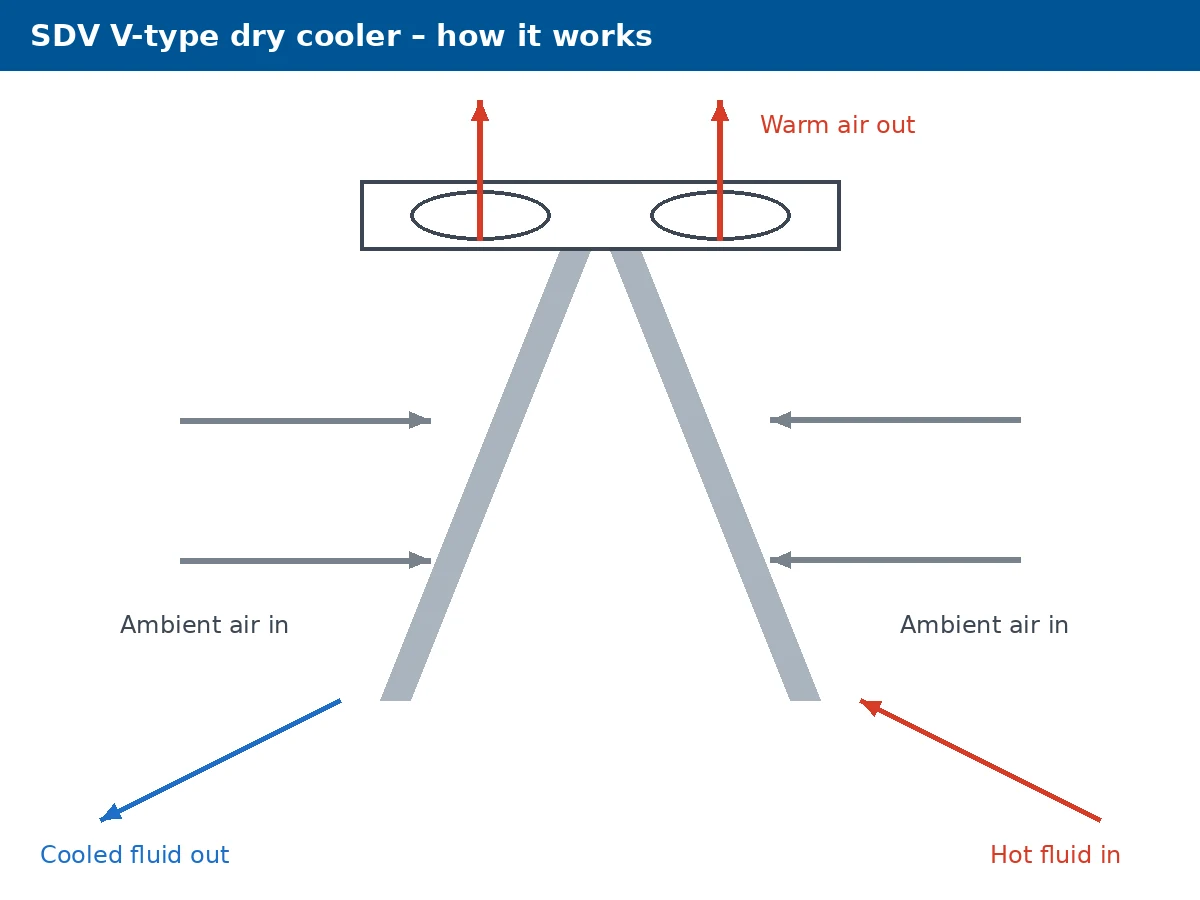

How it works

Selection on request

Ratings are provided per project after engineering review with our manufacturing partner. Send your fluid, flow, inlet/outlet temperatures, design ambient and site location for a duty-specific selection.

Get a Quote

Middle East site notes

Confirm design dry-bulb and wet-bulb temperatures, power supply, water quality, coastal exposure, sound limit and installation clearances before final selection.

Features and options

• V-coil layout, compact footprint per kW
• EC fans with speed control (AC + VFD option)

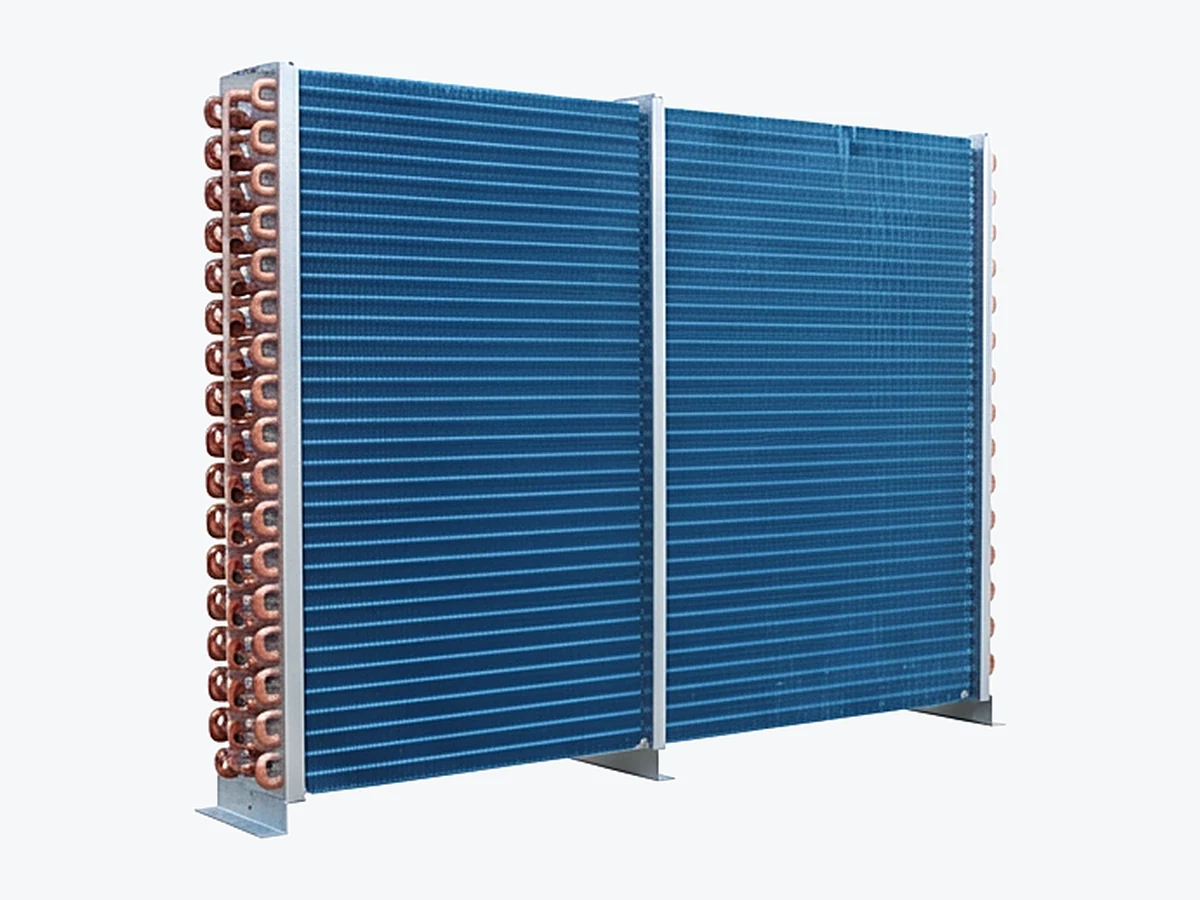

• Cu tube / Al fin standard; coated fin, Cu/Cu or stainless options for coastal sites
• Glycol designs available
• Hot-dip galvanised / Al-Zn frame, stainless fasteners
• Sand screens optional

Applications

Data centers · process and industrial closed loops · power generation / gensets · HVAC chiller condenser loops · oil and gas skids

Frequently asked questions

Can a dry cooler deliver 40 °C water at 46 °C ambient?

No. A dry cooler always leaves fluid above ambient dry-bulb. For this duty see SHA or SHS.

How are ratings calculated?

By the ε-NTU method at the stated conditions. Ratings are preliminary; Apex engineering confirms each project selection.

Can it run with glycol?

Yes; capacity and pressure drop are re-calculated for the glycol type and concentration.

What coil protection do you suggest near the sea?

Coated fins or Cu/Cu coils may be suitable for coastal sites; selection depends on site conditions.

Larger than one module?

Modules are banked in parallel on site with a common header.

Request a selection

Get a Quote
