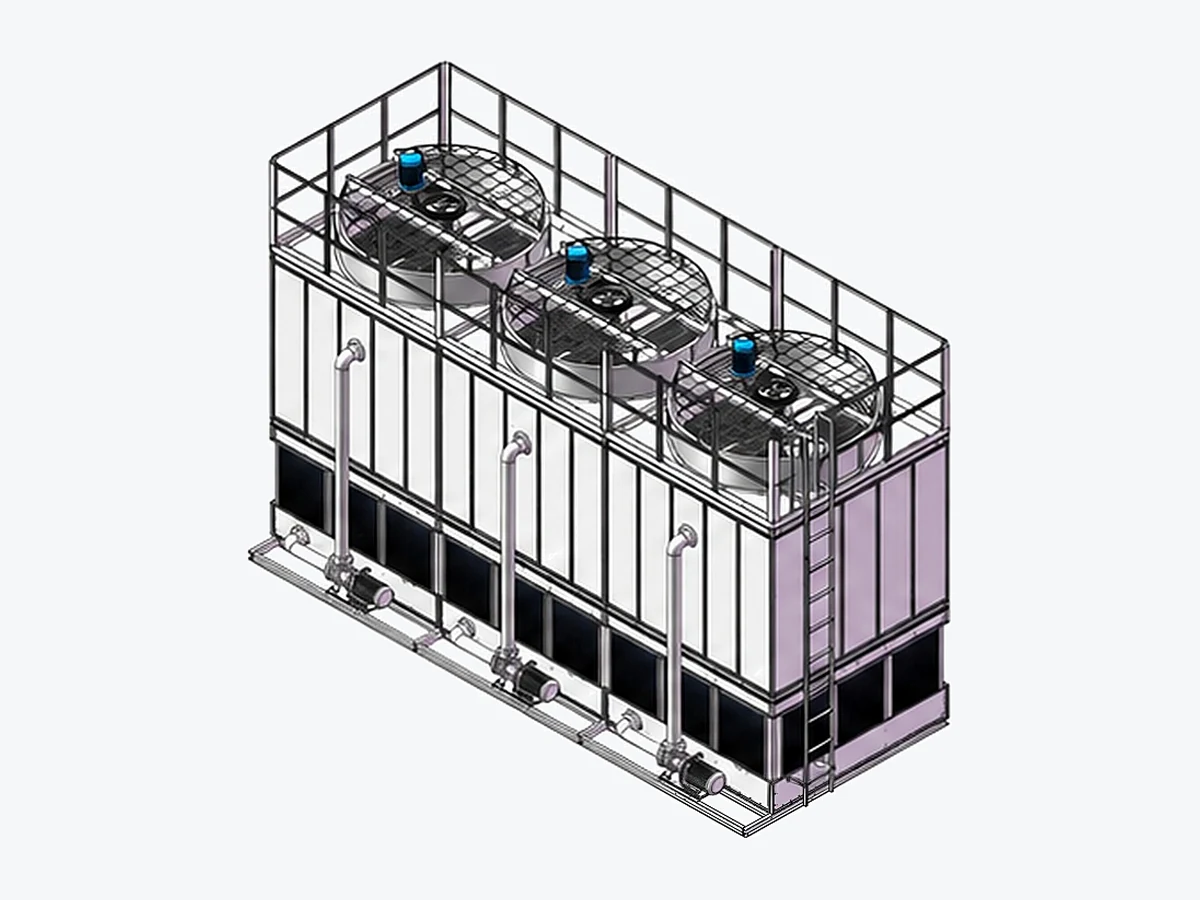

SCC counterflow closed circuit cooling tower, multi-cell

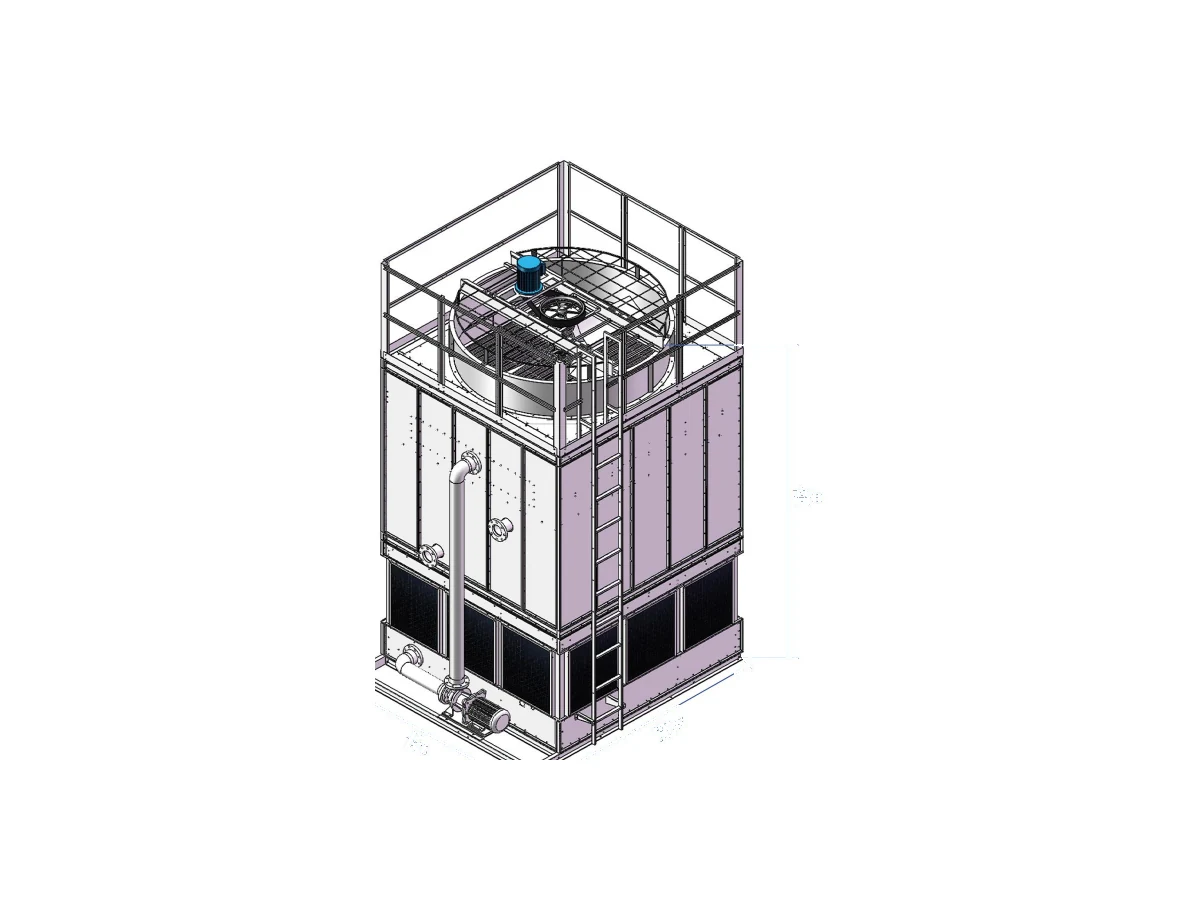

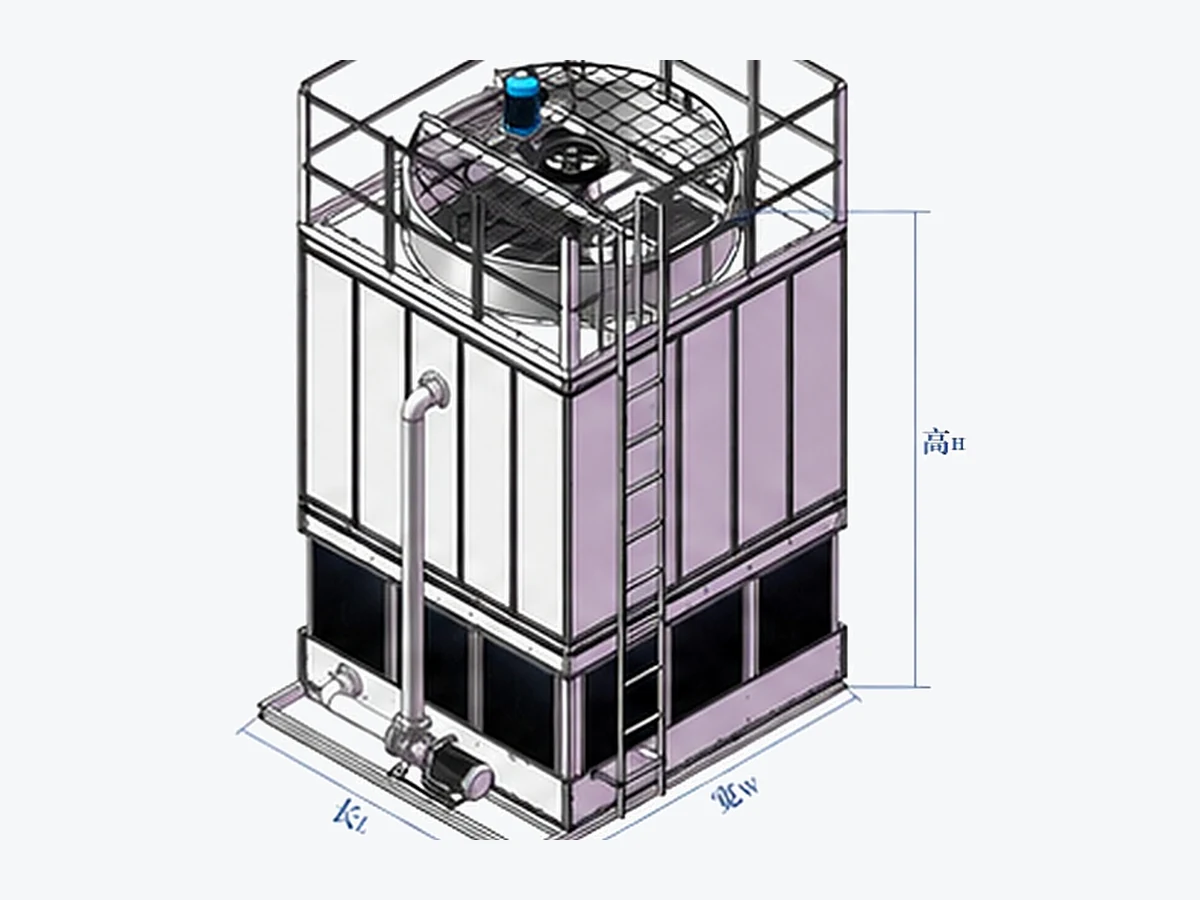

SCC counterflow closed circuit cooling tower single cell

SCC Closed-Circuit Tower

Price by engineering quotation
Get a Quote

SCC closed-circuit tower for process cooling duty review. Get a Quote

SKU: APEX-SCC-CLOSED
Category: , , ,

Description

SCC Counterflow Closed Circuit Cooling Tower is a counterflow, closed circuit cooling tower family with industrial steel construction. It is configured against project water temperatures, wet-bulb conditions, water quality, noise limits and site constraints.

Get a Quote

Complete Model Specifications

All 87 catalog models below were transcribed from the Apex product brochure and assigned to this product family. Scroll horizontally on smaller screens. Final project selection remains subject to thermal and site verification.

87 catalog models in this product family.

Published catalog ratings at 37 °C hot water / 32 °C cold water / 28 °C wet-bulb, 99.4 kPa. Other duties require engineering re-selection.

Model Flow (m³/h) Head (kPa) Dimensions (mm) Fan Ø (mm) Motor (kW) Spray pump (kW) Net weight (kg) Operating weight (kg) Inlet DN Outlet DN Overflow DN Drain DN Makeup DN
SCC-101011 5 92 1000 × 1000+500 × 3400 700 0.75 0.55 406 839 40 40 25 25 25
SCC-101012 7 92 1000 × 1000+500 × 3400 800 1.1 0.55 414 853 40 40 25 25 25
SCC-101013 10 92 1000 × 1000+500 × 3400 800 1.5 0.55 422 867 40 40 25 25 25
SCC-121211 15 95 1200 × 1200+500 × 3400 900 1.5 0.55 592 1220 50 50 25 25 25
SCC-121212 18 95 1200 × 1200+500 × 3400 900 2.2 0.55 604 1243 50 50 25 25 25
SCC-121213 20 95 1200 × 1200+500 × 3400 900 3 0.55 617 1266 50 50 25 25 25
SCC-122411 25 105 1200 × 2400+500 × 3400 900×2 1.5×2 0.55 1209 2487 50 50 25 25 25
SCC-122412 30 105 1200 × 2400+500 × 3400 900×2 2.2×2 0.55 1234 2533 80 80 25 25 25
SCC-122413 35 105 1200 × 2400+500 × 3400 900×2 3×2 0.55 1270 2575 80 80 25 25 25
SCC-141411 20 95 1400 × 1400+500 × 3460 1200 2.2 0.55 829 1705 50 50 25 25 25
SCC-141412 22 95 1400 × 1400+500 × 3460 1200 3 0.55 851 1745 50 50 25 25 25
SCC-141413 25 95 1400 × 1400+500 × 3460 1200 4 0.55 880 1793 50 50 25 25 25
SCC-142811 30 105 1400 × 2800+500 × 3460 1200×2 2.2×2 0.55 1697 3487 80 80 25 25 25
SCC-142812 38 105 1400 × 2800+500 × 3460 1200×2 3×2 0.55 1742 3570 80 80 25 25 25
SCC-142813 46 105 1400 × 2800+500 × 3460 1200×2 4×2 0.75 1790 3620 80 80 40 40 25
SCC-161611 25 103 1600 × 1600+500 × 3690 1350 3 0.55 1088 2236 50 50 25 25 25
SCC-161612 30 103 1600 × 1600+500 × 3690 1350 4 0.55 1118 2290 80 80 25 25 25
SCC-161613 35 103 1600 × 1600+500 × 3690 1350 5.5 0.55 1152 2335 50 50 25 25 25
SCC-163211 45 116 1600 × 3200+500 × 3690 1350×2 3×2 0.75 2186 4490 80 80 40 40 25
SCC-163212 55 116 1600 × 3200+500 × 3690 1350×2 4×2 1.1 2315 4795 100 100 40 40 25
SCC-163213 65 116 1600 × 3200+500 × 3690 1350×2 5.5×2 1.5 2420 4890 100 100 40 40 25
SCC-181811 30 102 1800 × 1800+500 × 3890 1450 3 0.55 1364 2804 80 80 25 25 25
SCC-181812 35 102 1800 × 1800+500 × 3890 1450 4 0.55 1398 2867 80 80 25 25 25
SCC-181813 10 102 1800 × 1800+500 × 3890 1450 5.5 0.75 1410 2920 80 80 25 25 25
SCC-183611 60 115 1800 × 3600+500 × 3890 1450×2 3×2 1.5 2738 5628 100 100 40 40 25
SCC-183612 70 115 1800 × 3600+500 × 3890 1450×2 4×2 2.2 2888 5985 100 100 40 40 25
SCC-183613 80 115 1800 × 3600+500 × 3890 1450×2 5.5×2 2.2 2931 6039 100 100 40 40 25
SCC-202011 30 105 2000 × 2000+500 × 3960 1450 3 1.1 197 3938 100 100 40 40 25
SCC-202012 58 105 2000 × 2000+500 × 3960 1450 4 1.5 1969 4034 100 100 40 40 25
SCC-202013 66 105 2000 × 2000+500 × 3960 1450 5.5 2.2 2010 4015 100 100 40 40 25
SCC-204011 100 120 2000 × 4000+500 × 3960 1450×2 3×2 2.2 3949 8189 125 125 40 40 25
SCC-204012 116 120 2000 × 4000+500 × 3960 1450×2 4×2 2.2 3949 8189 125 125 40 40 25
SCC-204013 132 120 2000 × 4000+500 × 3960 1450×2 5.5×2 2.2 4031 8275 125 125 40 40 25
SCC-222211 60 105 2200 × 2200+500 × 4200 1800 4 1.5 2325 4770 100 100 40 40 25
SCC-222212 72 105 2200 × 2200+500 × 4200 1800 5.5 2.2 2392 4895 100 100 40 40 25
SCC-222213 84 105 2200 × 2200+500 × 4200 1800 7.5 2.2 2446 4948 100 100 40 40 25
SCC-224411 120 122 2200 × 4400+500 × 4200 1800×2 4×2 2.2 4797 9941 125 125 40 40 25
SCC-224412 140 122 2200 × 4400+500 × 4200 1800×2 5.5×2 2.2 4961 10271 150 150 40 40 25
SCC-224413 165 122 2200 × 4400+500 × 4200 1800×2 7.5×2 3 5016 10326 150 150 50 50 40
SCC-262611 80 105 2600 × 2600+500 × 4470 2100 4 2.2 3265 6774 125 125 40 40 25
SCC-262612 95 105 2600 × 2600+500 × 4470 2100 5.5 2.2 3358 6961 125 125 40 40 25
SCC-262613 105 105 2600 × 2600+500 × 4470 2100 7.5 2.2 3410 7013 125 125 40 40 25
SCC-265211 160 122 2600 × 5200+500 × 4470 2100×2 4×2 3 6550 13591 150 150 50 50 40
SCC-265212 190 122 2600 × 5200+500 × 4470 2100×2 5.5×2 3 6701 14067 125×2 125×2 50 50 40
SCC-265213 210 122 2600 × 5200+500 × 4470 2100×2 7.5×2 – 7011 14117 125×2 125×2 50 50 40
SCC-303011 100 105 3000 × 3000+500 × 4570 2400 5.5 2.2 2840 5790 125 125 40 40 25
SCC-303012 110 105 3000 × 3000+500 × 4570 2400 7.5 2.2 2952 5998 125 125 40 40 25
SCC-303013 120 105 3000 × 3000+500 × 4570 2400 11 2.2 3017 6063 125 125 40 40 25
SCC-303014 130 108 3000 × 3000+500 × 4570 2600 7.5 2.2 2945 6091 125 125 40 40 25
SCC-303015 140 108 3000 × 3000+500 × 4570 2600 11 2.2 3079 6358 150 150 40 40 25
SCC-303016 150 108 3000 × 3000+500 × 4570 2600 15 3 3144 6423 150 150 50 50 40
SCC-306011 200 120 3000 × 6000+500 × 4570 2400×2 5.5×2 3 5916 12233 125×2 125×2 50 50 40
SCC-306012 220 120 3000 × 6000+500 × 4570 2400×2 7.5×2 – 6131 12914 125×2 125×2 50 50 40
SCC-306013 240 120 3000 × 6000+500 × 4570 2400×2 11×2 – 6235 13018 125×2 125×2 50 50 40
SCC-306014 260 125 3000 × 6000+500 × 4670 2600×2 7.5×2 5.5 6131 12914 125×2 125×2 50 50 40
SCC-306015 280 125 3000 × 6000+500 × 4670 2600×2 11×2 5.5 6447 13596 150×2 150×2 50 50 40
SCC-306016 300 125 3000 × 6000+500 × 4670 2600×2 15×2 5.5 6577 13726 150×2 150×2 80 50 50
SCC-323211 160 110 3250 × 3250+500 × 4690 2800 7.5 3 3408 7049 150 150 50 50 40
SCC-323212 175 110 3250 × 3250+500 × 4690 2800 11 – 3558 7350 125×2 125×2 50 50 40
SCC-323213 190 110 3250 × 3250+500 × 4690 2800 15 – 3630 7422 125×2 125×2 50 50 40
SCC-353511 205 112 3500 × 3500+500 × 4940 3000 11 5.5 4006 8283 125×2 125×2 50 50 40
SCC-353512 215 112 3500 × 3500+500 × 4940 3000 15 5.5 4190 8652 125×2 125×2 50 50 40
SCC-353513 225 112 3500 × 3500+500 × 4940 3000 18.5 5.5 4260 8722 125×2 125×2 50 50 40
SCC-373711 230 112 3750 × 3750+500 × 4940 3200 11 5.5 4646 9604 125×2 125×2 50 50 40
SCC-373712 245 112 3750 × 3750+500 × 4940 3200 15 5.5 5076 10709 125×2 125×2 50 50 40
SCC-373713 260 112 3750 × 3750+500 × 4940 3200 18.5 5.5 5151 10784 125×2 125×2 50 50 40
SCC-404011 275 115 4000 × 4000+600 × 4940 3400 15 5.5 5354 11065 150×2 150×2 50 50 40
SCC-404012 290 115 4000 × 4000+600 × 4940 3400 18.5 7.5 5863 12372 150×2 150×2 50 50 40
SCC-404013 305 115 4000 × 4000+600 × 4940 3400 22 7.5 5948 12457 150×2 150×2 80 50 50
SCC-424211 330 120 4250 × 4250+600 × 5260 3400 15 4×2 7044 14829 150×2 150×2 80 50 50
SCC-424212 350 120 4250 × 4250+600 × 5260 3400 18.5 4×2 7388 15574 150×2 150×2 80 50 50
SCC-424213 370 120 4250 × 4250+600 × 5260 3400 22 4×2 7483 15665 200×2 200×2 80 50 50
SCC-454511 400 130 4500 × 4500+600 × 6060 3700 18.5 5.5×2 8031 16910 200×2 200×2 80 50 50
SCC-454512 430 130 4500 × 4500+600 × 6060 3700 22 5.5×2 8430 17771 200×2 200×2 80 50 50
SCC-454513 460 130 4500 × 4500+600 × 6060 3700 30 5.5×2 8525 17866 200×2 200×2 80 50 50
SCC-474711 480 130 4750 × 4750+600 × 6060 3700 18.5 5.5×2 9008 18971 200×2 200×2 80 50 50
SCC-474712 510 130 4750 × 4750+600 × 6060 3700 22 5.5×2 9465 19957 200×2 200×2 80 80 50
SCC-474713 540 130 4750 × 4750+600 × 6060 3700 30 5.5×2 9565 20052 200×2 200×2 80 80 50
SCC-505011 550 135 5000 × 5000+600 × 6410 4000 22 7.5×2 11100 23350 200×2 200×2 80 80 50
SCC-505012 580 135 5000 × 5000+600 × 6410 4000 30 7.5×2 11595 24420 200×2 200×2 80 80 50
SCC-505013 610 135 5000 × 5000+600 × 6410 4000 37 7.5×2 11697 24522 200×3 200×3 100 80 50
SCC-555511 600 138 5500 × 5500+600 × 6410 4200 22 7.5×2 14059 29613 200×3 200×3 100 80 50
SCC-555512 640 138 5500 × 5500+600 × 6410 4200 30 7.5×2 14059 29613 200×3 200×3 100 80 50
SCC-555513 680 138 5500 × 5500+600 × 6410 4200 37 7.5×2 14161 29715 200×3 200×3 100 80 50
SCC-606011 700 142 6000 × 6000+600 × 6410 4500 30 1.5×2 16024 33711 200×3 200×3 100 80 50
SCC-606012 25 142 6000 × 6000+600 × 6410 4500 37 7.5×2 16745 35269 200×3 200×3 100 80 50
SCC-606013 150 142 6000 × 6000+600 × 6410 4500 45 7.5×2 16857 35381 200×3 200×3 100 80 50

Sound and drift data available on request for the selected model.

Published Selection Basis

  • Inlet water temperature: 37°C
  • Outlet water temperature: 32°C
  • Wet-bulb temperature: 28°C
  • Atmospheric pressure: 99,400 Pa
  • Water temperature drop: 5°C

Engineering Information Required

Send design flow, entering and leaving water temperatures, design wet-bulb temperature, installation altitude, circulating-water quality, noise target, power supply and footprint limits. Apex will confirm the final model, cell quantity, materials, motor configuration, piping and delivery scope.

Get a Quote

Our commitments

Reply within 24 hours; quotation within 2–3 working days.

Warranty: 16 months from shipment or 12 months from commissioning, whichever comes first.

Third-party inspection and factory witness testing welcome.

Designed per CTI methods; CTI-certified manufacturing available on request (project-specific documentation).

Frequently Asked Questions

Are your towers CTI certified?

Our towers are designed per CTI methods. If your specification requires CTI-certified equipment, tell us at RFQ stage: for eligible series we provide project-specific CTI documentation from the manufacturing partner with the quotation.

What warranty do you offer?

16 months from shipment or 12 months from commissioning, whichever comes first.

Can we inspect before shipment?

Yes. Third-party inspection and factory witness testing are welcome, by appointment.

How fast will we get a quotation?

We reply within 24 hours and send a quotation within 2–3 working days once we have your duty data.

Delivery Commitments

  • 16-Month Warranty
  • Quote in 2-3 Working Days
  • Reply Within 24 Hours
  • Third-Party Inspection
  • Factory Witness Welcome

Send Engineering Inquiry

Include process fluid, flow, temperatures, wet-bulb and project country for a faster SCC engineering review.

Get a Quote
Get a Quote

Additional information

Series

SCC
Circuit

Closed circuit
Flow arrangement

Counterflow
Construction

Steel
