SCT counterflow open FRP cooling tower, multi-cell
SCT counterflow open cooling tower single cell
SCT counterflow open cooling tower Type II
SCT counterflow open steel cooling tower
SCT counterflow open steel cooling tower Type II

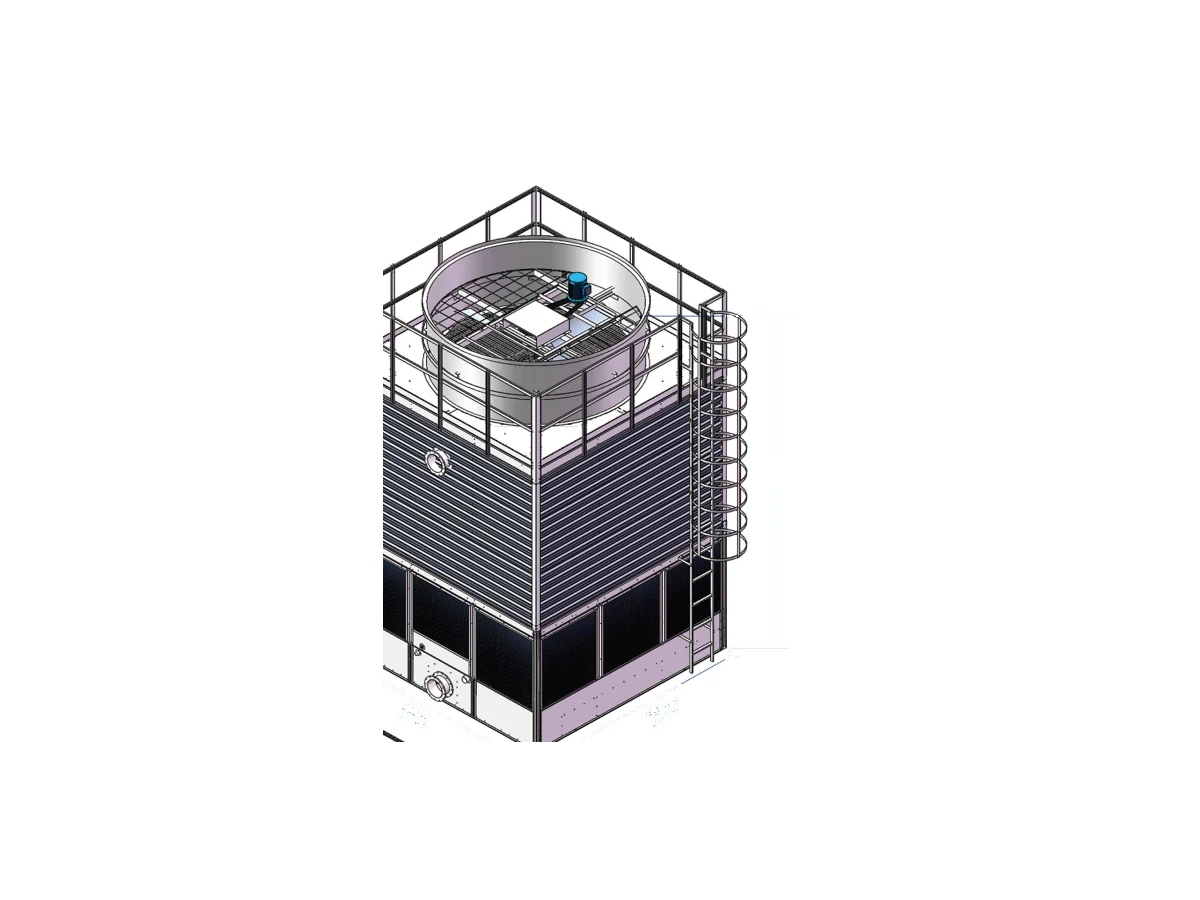

SCT II FRP Counterflow Tower

Price by engineering quotation
Get a Quote

SCT II FRP counterflow tower for industrial heat rejection. Get a Quote

SKU: APEX-SCT-FRP-II
Category: , , ,

Description

SCT Type II FRP Counterflow Open Circuit Cooling Tower is a counterflow, open circuit cooling tower family with corrosion-resistant FRP construction. It is configured against project water temperatures, wet-bulb conditions, water quality, noise limits and site constraints.

Get a Quote

Complete Model Specifications

All 120 catalog models below were transcribed from the Apex product brochure and assigned to this product family. Scroll horizontally on smaller screens. Final project selection remains subject to thermal and site verification.

120 catalog models in this product family.

Published catalog ratings at 37 °C hot water / 32 °C cold water / 28 °C wet-bulb, 99.4 kPa. Other duties require engineering re-selection.

Model Flow (m³/h) Head (kPa) Dimensions (mm) Fan Ø (mm) Motor (kW) Net weight (kg) Operating weight (kg) Inlet DN Outlet DN Overflow DN Drain DN Makeup DN
SCT-152011U 80 50 2050+140 × 2050+140 × 4550 1450 2.2 976 1976 125 125 50 50 25
SCT-152012U 88 50 2050+140 × 2050+140 × 4550 1450 3 991 1991 125 125 50 50 25
SCT-152013U 96 50 2050+140 × 2050+140 × 4550 1450 4 1036 2036 125 125 50 50 25
SCT-152014U 89 54 2050+140 × 2050+140 × 4950 1450 2.2 1056 2056 125 125 50 50 25
SCT-152015U 98 54 2050+140 × 2050+140 × 4950 1450 3 1071 2071 125 125 50 50 25
SCT-152016U 108 54 2050+140 × 2050+140 × 4950 1450 4 1116 2116 125 125 50 50 25
SCT-152111U 90 50 2100+140 × 2100+140 × 4550 1450 3 1026 2076 125 125 50 50 25
SCT-152112U 99 50 2100+140 × 2100+140 × 4550 1450 4 1066 2116 125 125 50 50 25
SCT-152113U 107 50 2100+140 × 2100+140 × 4550 1450 5.5 1071 2121 125 125 50 50 25
SCT-152114U 101 54 2100+140 × 2100+140 × 4950 1450 3 1106 2156 125 125 50 50 25
SCT-152115U 111 54 2100+140 × 2100+140 × 4950 1450 4 1146 2196 125 125 50 50 25
SCT-152116U 119 54 2100+140 × 2100+140 × 4950 1450 5.5 1151 2201 125 125 50 50 25
SCT-182211U 100 52 2250+140 × 2250+140 × 4590 1800 4 1085 2235 125 125 50 50 25
SCT-182212U 110 52 2250+140 × 2250+140 × 4590 1800 5.5 1105 2255 125 125 50 50 25
SCT-182213U 120 52 2250+140 × 2250+140 × 4590 1800 7.5 1115 2265 125 125 50 50 25
SCT-182214U 112 56 2250+140 × 2250+140 × 4990 1800 4 1075 2325 125 125 50 50 25
SCT-182215U 123 56 2250+140 × 2250+140 × 4990 1800 5.5 1095 2345 150 150 50 50 25
SCT-182216U 134 56 2250+140 × 2250+140 × 4990 1800 7.5 1105 2355 150 150 50 50 25
SCT-212511U 125 52 2500+140 × 2500+140 × 4690 2100 5.5 1300 3070 150 150 50 50 25
SCT-212512U 137 52 2500+140 × 2500+140 × 4690 2100 7.5 1310 3080 150 150 50 50 25
SCT-212513U 148 52 2500+140 × 2500+140 × 4690 2100 11 1360 3130 150 150 50 50 25
SCT-212514U 138 56 2500+140 × 2500+140 × 5090 2100 5.5 1400 3170 150 150 50 50 25
SCT-212515U 153 56 2500+140 × 2500+140 × 5090 2100 7.5 1410 3180 150 150 50 50 25
SCT-212516U 162 56 2500+140 × 2500+140 × 5090 2100 11 1460 3230 150 150 50 50 25
SCT-212711U 150 55 2750+140 × 2750+140 × 4890 2100 5.5 1470 3670 150 150 50 50 25
SCT-212712U 165 55 2750+140 × 2750+140 × 4890 2100 7.5 1480 3680 150 150 50 50 25
SCT-212713U 180 55 2750+140 × 2750+140 × 4890 2100 11 1530 3740 200 200 50 50 25
SCT-212714U 167 59 2750+140 × 2750+140 × 5290 2100 5.5 1570 3770 150 150 50 50 25
SCT-212715U 184 59 2750+140 × 2750+140 × 5290 2100 7.5 1580 3780 200 200 50 50 25
SCT-212716U 201 59 2750+140 × 2750+140 × 5290 2100 11 1630 3830 200 200 50 50 25
SCT-243011U 175 55 3000+140 × 3000+140 × 4890 2400 5.5 1665 4365 200 200 50 50 25
SCT-243012U 192 55 3000+140 × 3000+140 × 4890 2400 7.5 1675 4375 200 200 50 50 25
SCT-243013U 208 55 3000+140 × 3000+140 × 4890 2400 11 1725 4425 200 200 50 50 25
SCT-243014U 196 59 3000+140 × 3000+140 × 5290 2400 5.5 1765 4465 200 200 50 50 25
SCT-243015U 213 59 3000+140 × 3000+140 × 5290 2400 7.5 1775 4475 200 200 50 50 25
SCT-243016U 230 59 3000+140 × 3000+140 × 5290 2400 11 1825 4525 200 200 50 50 25
SCT-243211U 200 55 3250+140 × 3250+140 × 4890 2400 7.5 1815 4815 200 200 50 50 25
SCT-243212U 220 55 3250+140 × 3250+140 × 4890 2400 11 1855 4855 200 200 50 50 25
SCT-243213U 240 55 3250+140 × 3250+140 × 4890 2400 15 1875 4875 250 250 50 50 25
SCT-243214U 224 59 3250+140 × 3250+140 × 5290 2400 7.5 1935 4935 200 200 50 50 25
SCT-243215U 245 59 3250+140 × 3250+140 × 5290 2400 11 1975 4975 250 250 50 50 25
SCT-243216U 265 59 3250+140 × 3250+140 × 5290 2400 15 1995 4995 250 250 50 50 25
SCT-263411U 225 55 3400+140 × 3400+140 × 4890 2600 7.5 1975 5375 200 200 50 50 25
SCT-263412U 247 55 3400+140 × 3400+140 × 4890 2600 11 2015 5415 250 250 50 50 25
SCT-263413U 270 55 3400+140 × 3400+140 × 4890 2600 15 2035 5435 250 250 50 50 25
SCT-263414U 252 59 3400+140 × 3400+140 × 5290 2600 7.5 2095 5495 250 250 50 50 25
SCT-263415U 273 59 3400+140 × 3400+140 × 5290 2600 11 2135 5535 250 250 50 50 25
SCT-263416U 302 59 3400+140 × 3400+140 × 5290 2600 15 2155 5555 250 250 50 50 25
SCT-283511U 250 56 3500+140 × 3500+140 × 5590 2800 7.5 2240 5890 250 250 80 80 40
SCT-283512U 275 56 3500+140 × 3500+140 × 5590 2800 11 2280 5930 250 250 80 80 40
SCT-283513U 295 56 3500+140 × 3500+140 × 5590 2800 15 2300 5950 250 250 80 80 40
SCT-283514U 280 62 3500+140 × 3500+140 × 6190 2800 7.5 2360 6010 250 250 80 80 40
SCT-283515U 305 62 3500+140 × 3500+140 × 6190 2800 11 2400 6050 250 250 80 80 40
SCT-283516U 325 62 3500+140 × 3500+140 × 6190 2800 15 2420 6070 250 250 80 80 40
SCT-304011U 300 56 4000+140 × 4000+140 × 5790 3000 11 2720 7520 250 250 80 80 40
SCT-304012U 330 56 4000+140 × 4000+140 × 5790 3000 15 2760 7560 250 250 80 80 40
SCT-304013U 360 56 4000+140 × 4000+140 × 5790 3000 18.5 2800 7600 250 250 80 80 40
SCT-304014U 335 62 4000+140 × 4000+140 × 6390 3000 11 2920 7720 250 250 80 80 40
SCT-304015U 365 62 4000+140 × 4000+140 × 6390 3000 15 2960 7760 250 250 80 80 40
SCT-304016U 395 62 4000+140 × 4000+140 × 6390 3000 18.5 3000 7900 250 250 80 80 40
SCT-324211U 350 60 4250+140 × 4250+140 × 5990 3200 11 3070 8370 250 250 80 80 40
SCT-324212U 385 60 4250+140 × 4250+140 × 5990 3200 15 3110 8410 250 250 80 80 40
SCT-324213U 420 60 4250+140 × 4250+140 × 5990 3200 18.5 3150 8450 250 250 80 80 40
SCT-324214U 390 66 4250+140 × 4250+140 × 6590 3200 11 3270 8570 250 250 80 80 40
SCT-324215U 430 66 4250+140 × 4250+140 × 6590 3200 15 3310 8610 250 250 80 80 40
SCT-324216U 465 66 4250+140 × 4250+140 × 6590 3200 18.5 3350 8650 300 300 80 80 40
SCT-324511U 380 60 4500+140 × 4500+140 × 5990 3200 11 3400 9400 250 250 80 80 40
SCT-324512U 418 60 4500+140 × 4500+140 × 5990 3200 15 3440 9440 250 250 80 80 40
SCT-324513U 455 60 4500+140 × 4500+140 × 5990 3200 18.5 3480 9480 300 300 80 80 40
SCT-324514U 425 66 4500+140 × 4500+140 × 6590 3200 11 3620 9620 250 250 80 80 40
SCT-324515U 468 66 4500+140 × 4500+140 × 6590 3200 15 3660 9660 300 300 80 80 40
SCT-324516U 508 66 4500+140 × 4500+140 × 6590 3200 18.5 3700 9700 300 300 80 80 40
SCT-345011U 400 60 5000+140 × 5000+140 × 5990 3400 15 3655 11155 250 250 80 80 40
SCT-345012U 440 60 5000+140 × 5000+140 × 5990 3400 18.5 3695 11195 250 250 80 80 40
SCT-345013U 480 60 5000+140 × 5000+140 × 5990 3400 22 3705 11205 300 300 80 80 40
SCT-345014U 445 66 5000+140 × 5000+140 × 6590 3400 15 3905 11405 250 250 80 80 40
SCT-345015U 490 66 5000+140 × 5000+140 × 6590 3400 18.5 3945 11445 300 300 80 80 40
SCT-345016U 535 66 5000+140 × 5000+140 × 6590 3400 22 3955 11455 300 300 80 80 40
SCT-375111U 450 60 5100+140 × 5100+140 × 6140 3700 15 3980 12960 300 300 80 80 50
SCT-375112U 495 60 5100+140 × 5100+140 × 6140 3700 18.5 4020 13000 300 300 80 80 50
SCT-375113U 540 60 5100+140 × 5100+140 × 6140 3700 22 4030 13010 300 300 80 80 50
SCT-375114U 505 66 5100+140 × 5100+140 × 6740 3700 15 4230 13210 300 300 80 80 50
SCT-375115U 553 66 5100+140 × 5100+140 × 6740 3700 18.5 4270 13250 300 300 80 80 50
SCT-375116U 603 66 5100+140 × 5100+140 × 6740 3700 22 4280 13260 300 300 80 80 50
SCT-375211U 500 63 5250+140 × 5250+140 × 6340 3700 15 4310 13710 300 300 80 80 50
SCT-375212U 550 63 5250+140 × 5250+140 × 6340 3700 18.5 4350 13750 300 300 80 80 50
SCT-375213U 595 63 5250+140 × 5250+140 × 6340 3700 22 4360 13760 300 300 80 80 50
SCT-375214U 560 69 5250+140 × 5250+140 × 6940 3700 15 4580 13980 300 300 80 80 50
SCT-375215U 615 69 5250+140 × 5250+140 × 6940 3700 18.5 4620 14020 300 300 80 80 50
SCT-375216U 665 69 5250+140 × 5250+140 × 6940 3700 22 4630 14030 300 300 80 80 50
SCT-405511U 600 68 5500+140 × 5500+140 × 7600 4000 18.5 4865 15365 300 300 80 80 50
SCT-405512U 660 68 5500+140 × 5500+140 × 7600 4000 22 4880 15380 300 300 80 80 50
SCT-405513U 720 68 5500+140 × 5500+140 × 7600 4000 30 4915 15415 350 350 80 80 50
SCT-405514U 670 73 5500+140 × 5500+140 × 8200 4000 18.5 5125 15625 300 300 80 80 50
SCT-405515U 735 73 5500+140 × 5500+140 × 8200 4000 22 5140 15640 350 350 80 80 50
SCT-405516U 805 73 5500+140 × 5500+140 × 8200 4000 30 5175 15675 350 350 80 80 50
SCT-426011U 700 68 6000+140 × 6000+140 × 7600 4200 22 5860 18460 350 350 80 80 50
SCT-426012U 770 68 6000+140 × 6000+140 × 7600 4200 30 5900 18500 350 350 80 80 50
SCT-426013U 840 68 6000+140 × 6000+140 × 7600 4200 45 6060 18660 400 400 80 80 50
SCT-426014U 780 73 6000+140 × 6000+140 × 8200 4200 22 6160 18760 350 350 80 80 50
SCT-426015U 860 73 6000+140 × 6000+140 × 8200 4200 30 6200 18800 400 400 80 80 50
SCT-426016U 935 73 6000+140 × 6000+140 × 8200 4200 45 6360 18960 400 400 80 80 50
SCT-426511U 800 70 6500+140 × 6500+140 × 7800 4200 22 6740 21240 350 350 80 80 50
SCT-426512U 880 70 6500+140 × 6500+140 × 7800 4200 30 6780 21280 400 400 80 80 50
SCT-426513U 960 70 6500+140 × 6500+140 × 7800 4200 45 6940 21440 400 400 80 80 50
SCT-426514U 895 75 6500+140 × 6500+140 × 8400 4200 22 7060 21560 400 400 80 80 50
SCT-426515U 985 75 6500+140 × 6500+140 × 8400 4200 30 7100 21600 400 400 80 80 50
SCT-426516U 1070 75 6500+140 × 6500+140 × 8400 4200 45 7300 21760 400 400 80 80 50
SCT-457011U 900 72 7000+140 × 7000+140 × 7800 4500 30 7810 24810 300×2 300×2 80×2 80×2 50×2
SCT-457012U 990 72 7000+140 × 7000+140 × 7800 4500 45 7960 24960 300×2 300×2 80×2 80×2 50×2
SCT-457013U 1080 72 7000+140 × 7000+140 × 7800 4500 55 8120 25120 300×2 300×2 80×2 80×2 50×2
SCT-457014U 1005 77 7000+140 × 7000+140 × 8400 4500 30 8160 25160 300×2 300×2 80×2 80×2 50×2
SCT-457015U 1105 77 7000+140 × 7000+140 × 8400 4500 45 8310 25310 300×2 300×2 80×2 80×2 50×2
SCT-457016U 1205 77 7000+140 × 7000+140 × 8400 4500 55 8470 25470 300×2 300×2 80×2 80×2 50×2
SCT-457511U 1000 72 7500+140 × 7500+140 × 7800 4500 30 8460 27960 300×2 300×2 80×2 80×2 50×2
SCT-457512U 1100 72 7500+140 × 7500+140 × 7800 4500 45 8610 28110 300×2 300×2 80×2 80×2 50×2
SCT-457513U 1200 72 7500+140 × 7500+140 × 7800 4500 55 8770 28270 300×2 300×2 80×2 80×2 50×2
SCT-457514U 1120 77 7500+140 × 7500+140 × 8400 4500 30 8860 28360 300×2 300×2 80×2 80×2 50×2
SCT-457515U 1230 77 7500+140 × 7500+140 × 8400 4500 45 9010 28510 300×2 300×2 80×2 80×2 50×2
SCT-457516U 1340 77 7500+140 × 7500+140 × 8400 4500 55 9170 28670 300×2 300×2 80×2 80×2 50×2

Sound and drift data available on request for the selected model.

Published Selection Basis

  • Inlet water temperature: 37°C
  • Outlet water temperature: 32°C
  • Wet-bulb temperature: 28°C
  • Atmospheric pressure: 99,400 Pa
  • Water temperature drop: 5°C

Engineering Information Required

Send design flow, entering and leaving water temperatures, design wet-bulb temperature, installation altitude, circulating-water quality, noise target, power supply and footprint limits. Apex will confirm the final model, cell quantity, materials, motor configuration, piping and delivery scope.

Get a Quote

Our commitments

Reply within 24 hours; quotation within 2–3 working days.

Warranty: 16 months from shipment or 12 months from commissioning, whichever comes first.

Third-party inspection and factory witness testing welcome.

Designed per CTI methods; CTI-certified manufacturing available on request (project-specific documentation).

Frequently Asked Questions

Are your towers CTI certified?

Our towers are designed per CTI methods. If your specification requires CTI-certified equipment, tell us at RFQ stage: for eligible series we provide project-specific CTI documentation from the manufacturing partner with the quotation.

What warranty do you offer?

16 months from shipment or 12 months from commissioning, whichever comes first.

Can we inspect before shipment?

Yes. Third-party inspection and factory witness testing are welcome, by appointment.

How fast will we get a quotation?

We reply within 24 hours and send a quotation within 2–3 working days once we have your duty data.

Get a Quote

Additional information

Series

SCT
Circuit

Open circuit
Flow arrangement

Counterflow
Construction

FRP
