SCT II Steel Counterflow Tower

Price by engineering quotation
Get a Quote

SCT II steel counterflow tower for industrial heat rejection. Get a Quote

SKU: APEX-SCT-STEEL-II
Category: , , ,

Description

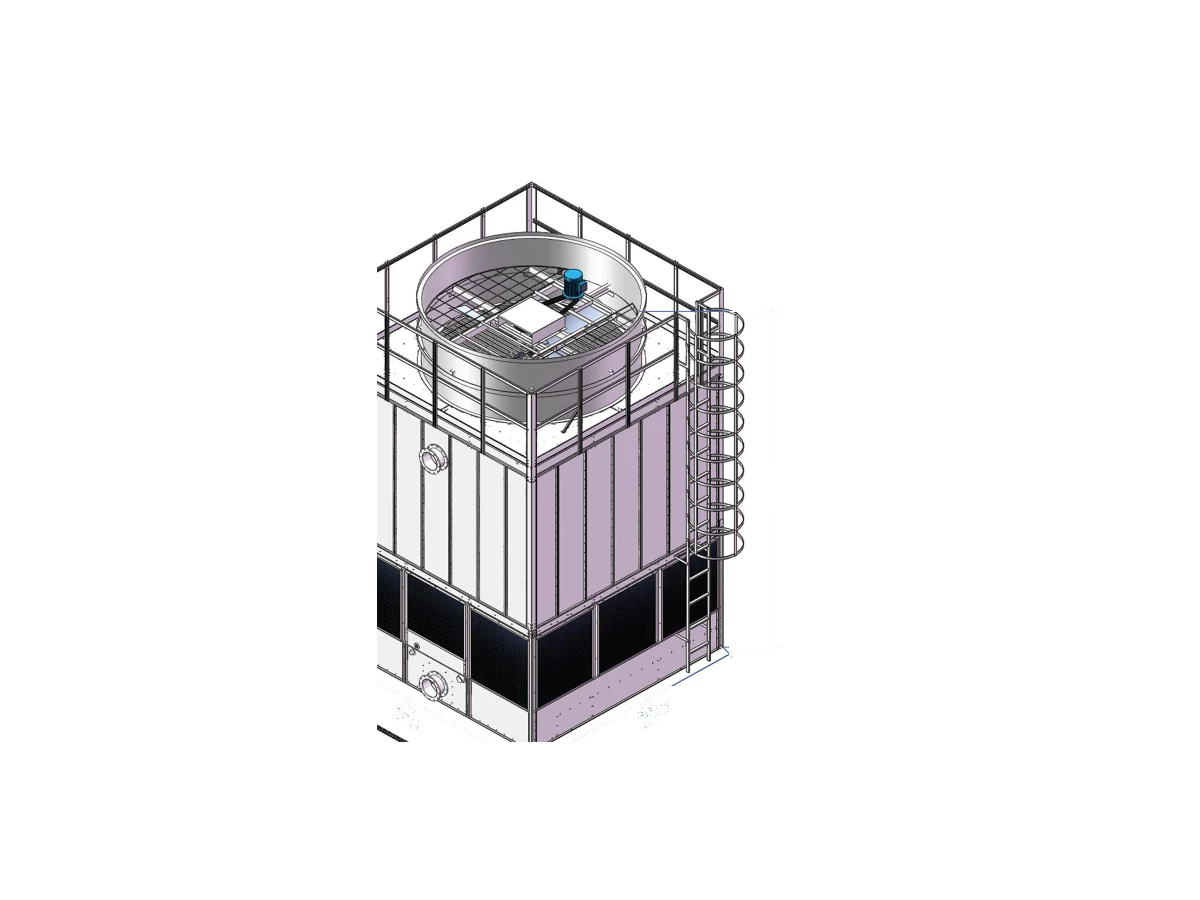

SCT Type II Steel Counterflow Open Circuit Cooling Tower is a counterflow, open circuit cooling tower family with industrial steel construction. It is configured against project water temperatures, wet-bulb conditions, water quality, noise limits and site constraints.

Get a Quote

Complete Model Specifications

All 120 catalog models below were transcribed from the Apex product brochure and assigned to this product family. Scroll horizontally on smaller screens. Final project selection remains subject to thermal and site verification.

120 catalog models in this product family.

Published catalog ratings at 37 °C hot water / 32 °C cold water / 28 °C wet-bulb, 99.4 kPa. Other duties require engineering re-selection.

Model Flow (m³/h) Head (kPa) Dimensions (mm) Fan Ø (mm) Motor (kW) Net weight (kg) Operating weight (kg) Inlet DN Outlet DN Overflow DN Drain DN Makeup DN
SCT-152011UG 80 50 2050+140 × 2050+140 × 4550 1450 2.2 1035 2035 125 125 50 50 25
SCT-152012UG 88 50 2050+140 × 2050+140 × 4550 1450 3 1050 2050 125 125 50 50 25
SCT-152013UG 96 50 2050+140 × 2050+140 × 4550 1450 4 1098 2098 125 125 50 50 25
SCT-152014UG 89 54 2050+140 × 2050+140 × 4950 1450 2.2 1119 2119 125 125 50 50 25
SCT-152015UG 98 54 2050+140 × 2050+140 × 4950 1450 3 1135 2135 125 125 50 50 25
SCT-152016UG 108 54 2050+140 × 2050+140 × 4950 1450 4 1183 2183 125 125 50 50 25
SCT-152111UG 90 50 2100+140 × 2100+140 × 4550 1450 3 1088 2138 125 125 50 50 25
SCT-152112UG 99 50 2100+140 × 2100+140 × 4550 1450 4 1130 2180 125 125 50 50 25
SCT-152113UG 107 50 2100+140 × 2100+140 × 4550 1450 5.5 1135 2185 125 125 50 50 25
SCT-152114UG 101 54 2100+140 × 2100+140 × 4950 1450 3 1172 2222 125 125 50 50 25
SCT-152115UG 111 54 2100+140 × 2100+140 × 4950 1450 4 1215 2265 125 125 50 50 25
SCT-152116UG 119 54 2100+140 × 2100+140 × 4950 1450 5.5 1220 2270 125 125 50 50 25
SCT-182211UG 100 52 2250+140 × 2250+140 × 4590 1800 4 1150 2300 125 125 50 50 25
SCT-182212UG 110 52 2250+140 × 2250+140 × 4590 1800 5.5 1171 2321 125 125 50 50 25
SCT-182213UG 120 52 2250+140 × 2250+140 × 4590 1800 7.5 1182 2332 125 125 50 50 25
SCT-182214UG 112 56 2250+140 × 2250+140 × 4990 1800 4 1240 2390 125 125 50 50 25
SCT-182215UG 123 56 2250+140 × 2250+140 × 4990 1800 5.5 1261 2411 150 150 50 50 25
SCT-182216UG 134 56 2250+140 × 2250+140 × 4990 1800 7.5 1271 2421 150 150 50 50 25
SCT-212511UG 125 52 2500+140 × 2500+140 × 4690 2100 5.5 1378 3148 150 150 50 50 25
SCT-212512UG 137 52 2500+140 × 2500+140 × 4690 2100 7.5 1389 3159 150 150 50 50 25
SCT-212513UG 148 52 2500+140 × 2500+140 × 4690 2100 11 1442 3212 150 150 50 50 25
SCT-212514UG 138 56 2500+140 × 2500+140 × 5090 2100 5.5 1484 3254 150 150 50 50 25
SCT-212515UG 153 56 2500+140 × 2500+140 × 5090 2100 7.5 1495 3265 150 150 50 50 25
SCT-212516UG 162 56 2500+140 × 2500+140 × 5090 2100 11 1548 3318 150 150 50 50 25
SCT-212711UG 150 55 2750+140 × 2750+140 × 4890 2100 5.5 1558 3758 150 150 50 50 25
SCT-212712UG 165 55 2750+140 × 2750+140 × 4890 2100 7.5 1569 3769 150 150 50 50 25
SCT-212713UG 180 55 2750+140 × 2750+140 × 4890 2100 11 1622 3832 200 200 50 50 25
SCT-212714UG 167 59 2750+140 × 2750+140 × 5290 2100 5.5 1664 3864 150 150 50 50 25
SCT-212715UG 184 59 2750+140 × 2750+140 × 5290 2100 7.5 1675 3875 200 200 50 50 25
SCT-212716UG 201 59 2750+140 × 2750+140 × 5290 2100 11 1728 3928 200 200 50 50 25
SCT-243011UG 175 55 3000+140 × 3000+140 × 4890 2400 5.5 1765 4465 200 200 50 50 25
SCT-243012UG 192 55 3000+140 × 3000+140 × 4890 2400 7.5 1776 4476 200 200 50 50 25
SCT-243013UG 208 55 3000+140 × 3000+140 × 4890 2400 11 1829 4529 200 200 50 50 25
SCT-243014UG 196 59 3000+140 × 3000+140 × 5290 2400 5.5 1871 4571 200 200 50 50 25
SCT-243015UG 213 59 3000+140 × 3000+140 × 5290 2400 7.5 1882 4582 200 200 50 50 25
SCT-243016UG 230 59 3000+140 × 3000+140 × 5290 2400 11 1935 4635 200 200 50 50 25
SCT-243211UG 200 55 3250+140 × 3250+140 × 4890 2400 7.5 1924 4924 200 200 50 50 25
SCT-243212UG 220 55 3250+140 × 3250+140 × 4890 2400 11 1966 4966 200 200 50 50 25
SCT-243213UG 240 55 3250+140 × 3250+140 × 4890 2400 15 1988 4988 250 250 50 50 25
SCT-243214UG 224 59 3250+140 × 3250+140 × 5290 2400 7.5 2051 5051 200 200 50 50 25
SCT-243215UG 245 59 3250+140 × 3250+140 × 5290 2400 11 2094 5094 250 250 50 50 25
SCT-243216UG 265 59 3250+140 × 3250+140 × 5290 2400 15 2115 5115 250 250 50 50 25
SCT-263411UG 225 55 3400+140 × 3400+140 × 4890 2600 7.5 2094 5494 200 200 50 50 25
SCT-263412UG 247 55 3400+140 × 3400+140 × 4890 2600 11 2136 5536 250 250 50 50 25
SCT-263413UG 270 55 3400+140 × 3400+140 × 4890 2600 15 2157 5557 250 250 50 50 25
SCT-263414UG 252 59 3400+140 × 3400+140 × 5290 2600 7.5 2221 5621 250 250 50 50 25
SCT-263415UG 273 59 3400+140 × 3400+140 × 5290 2600 11 2263 5663 250 250 50 50 25
SCT-263416UG 302 59 3400+140 × 3400+140 × 5290 2600 15 2284 5684 250 250 50 50 25
SCT-283511UG 250 56 3500+140 × 3500+140 × 5590 2800 7.5 2374 6024 250 250 80 80 40
SCT-283512UG 275 56 3500+140 × 3500+140 × 5590 2800 11 2417 6067 250 250 80 80 40
SCT-283513UG 295 56 3500+140 × 3500+140 × 5590 2800 15 2438 6088 250 250 80 80 40
SCT-283514UG 280 62 3500+140 × 3500+140 × 6190 2800 7.5 2502 6152 250 250 80 80 40
SCT-283515UG 305 62 3500+140 × 3500+140 × 6190 2800 11 2544 6194 250 250 80 80 40
SCT-283516UG 325 62 3500+140 × 3500+140 × 6190 2800 15 2565 6215 250 250 80 80 40
SCT-304011UG 300 56 4000+140 × 4000+140 × 5790 3000 11 2883 7683 250 250 80 80 40
SCT-304012UG 330 56 4000+140 × 4000+140 × 5790 3000 15 2926 7726 250 250 80 80 40
SCT-304013UG 360 56 4000+140 × 4000+140 × 5790 3000 18.5 2968 7768 250 250 80 80 40
SCT-304014UG 335 62 4000+140 × 4000+140 × 6390 3000 11 3095 7895 250 250 80 80 40
SCT-304015UG 365 62 4000+140 × 4000+140 × 6390 3000 15 3138 7938 250 250 80 80 40
SCT-304016UG 395 62 4000+140 × 4000+140 × 6390 3000 18.5 3180 8080 250 250 80 80 40
SCT-324211UG 350 60 4250+140 × 4250+140 × 5990 3200 11 3254 8554 250 250 80 80 40
SCT-324212UG 385 60 4250+140 × 4250+140 × 5990 3200 15 3297 8597 250 250 80 80 40
SCT-324213UG 420 60 4250+140 × 4250+140 × 5990 3200 18.5 3339 8639 250 250 80 80 40
SCT-324214UG 390 66 4250+140 × 4250+140 × 6590 3200 11 3466 8766 250 250 80 80 40
SCT-324215UG 430 66 4250+140 × 4250+140 × 6590 3200 15 3509 8809 250 250 80 80 40
SCT-324216UG 465 66 4250+140 × 4250+140 × 6590 3200 18.5 3551 8851 300 300 80 80 40
SCT-324511UG 380 60 4500+140 × 4500+140 × 5990 3200 11 3604 9604 250 250 80 80 40
SCT-324512UG 418 60 4500+140 × 4500+140 × 5990 3200 15 3646 9646 250 250 80 80 40
SCT-324513UG 455 60 4500+140 × 4500+140 × 5990 3200 18.5 3689 9689 300 300 80 80 40
SCT-324514UG 425 66 4500+140 × 4500+140 × 6590 3200 11 3837 9837 250 250 80 80 40
SCT-324515UG 468 66 4500+140 × 4500+140 × 6590 3200 15 3880 9880 300 300 80 80 40
SCT-324516UG 508 66 4500+140 × 4500+140 × 6590 3200 18.5 3922 9922 300 300 80 80 40
SCT-345011UG 400 60 5000+140 × 5000+140 × 5990 3400 15 3874 11374 250 250 80 80 40
SCT-345012UG 440 60 5000+140 × 5000+140 × 5990 3400 18.5 3917 11417 250 250 80 80 40
SCT-345013UG 480 60 5000+140 × 5000+140 × 5990 3400 22 3927 11427 300 300 80 80 40
SCT-345014UG 445 66 5000+140 × 5000+140 × 6590 3400 15 4139 11639 250 250 80 80 40
SCT-345015UG 490 66 5000+140 × 5000+140 × 6590 3400 18.5 4182 11682 300 300 80 80 40
SCT-345016UG 535 66 5000+140 × 5000+140 × 6590 3400 22 4192 11692 300 300 80 80 40
SCT-375111UG 450 60 5100+140 × 5100+140 × 6140 3700 15 4219 13199 300 300 80 80 50
SCT-375112UG 495 60 5100+140 × 5100+140 × 6140 3700 18.5 4261 13241 300 300 80 80 50
SCT-375113UG 540 60 5100+140 × 5100+140 × 6140 3700 22 4272 13252 300 300 80 80 50
SCT-375114UG 505 66 5100+140 × 5100+140 × 6740 3700 15 4484 13464 300 300 80 80 50
SCT-375115UG 553 66 5100+140 × 5100+140 × 6740 3700 18.5 4526 13506 300 300 80 80 50
SCT-375116UG 603 66 5100+140 × 5100+140 × 6740 3700 22 4537 13517 300 300 80 80 50
SCT-375211UG 500 63 5250+140 × 5250+140 × 6340 3700 15 4569 13969 300 300 80 80 50
SCT-375212UG 550 63 5250+140 × 5250+140 × 6340 3700 18.5 4611 14011 300 300 80 80 50
SCT-375213UG 595 63 5250+140 × 5250+140 × 6340 3700 22 4622 14022 300 300 80 80 50
SCT-375214UG 560 69 5250+140 × 5250+140 × 6940 3700 15 4855 14255 300 300 80 80 50
SCT-375215UG 615 69 5250+140 × 5250+140 × 6940 3700 18.5 4897 14297 300 300 80 80 50
SCT-375216UG 665 69 5250+140 × 5250+140 × 6940 3700 22 4908 14308 300 300 80 80 50
SCT-405511UG 600 68 5500+140 × 5500+140 × 7600 4000 18.5 5157 15657 300 300 80 80 50
SCT-405512UG 660 68 5500+140 × 5500+140 × 7600 4000 22 5173 15673 300 300 80 80 50
SCT-405513UG 720 68 5500+140 × 5500+140 × 7600 4000 30 5210 15710 350 350 80 80 50
SCT-405514UG 670 73 5500+140 × 5500+140 × 8200 4000 18.5 5433 15933 300 300 80 80 50
SCT-405515UG 735 73 5500+140 × 5500+140 × 8200 4000 22 5448 15948 350 350 80 80 50
SCT-405516UG 805 73 5500+140 × 5500+140 × 8200 4000 30 5486 15986 350 350 80 80 50
SCT-426011UG 700 68 6000+140 × 6000+140 × 7600 4200 22 6212 18812 350 350 80 80 50
SCT-426012UG 770 68 6000+140 × 6000+140 × 7600 4200 30 6254 18854 350 350 80 80 50
SCT-426013UG 840 68 6000+140 × 6000+140 × 7600 4200 45 6424 19024 400 400 80 80 50
SCT-426014UG 780 73 6000+140 × 6000+140 × 8200 4200 22 6530 19130 350 350 80 80 50
SCT-426015UG 860 73 6000+140 × 6000+140 × 8200 4200 30 6572 19172 400 400 80 80 50
SCT-426016UG 935 73 6000+140 × 6000+140 × 8200 4200 45 6742 19342 400 400 80 80 50
SCT-426511UG 800 70 6500+140 × 6500+140 × 7800 4200 22 7144 21644 350 350 80 80 50
SCT-426512UG 880 70 6500+140 × 6500+140 × 7800 4200 30 7187 21687 400 400 80 80 50
SCT-426513UG 960 70 6500+140 × 6500+140 × 7800 4200 45 7356 21856 400 400 80 80 50
SCT-426514UG 895 75 6500+140 × 6500+140 × 8400 4200 22 7484 21984 400 400 80 80 50
SCT-426515UG 985 75 6500+140 × 6500+140 × 8400 4200 30 7526 22026 400 400 80 80 50
SCT-426516UG 1070 75 6500+140 × 6500+140 × 8400 4200 45 7738 22198 400 400 80 80 50
SCT-457011UG 900 72 7000+140 × 7000+140 × 7800 4500 30 8279 25279 300×2 300×2 80×2 80×2 50×2
SCT-457012UG 990 72 7000+140 × 7000+140 × 7800 4500 45 8438 25438 300×2 300×2 80×2 80×2 50×2
SCT-457013UG 1080 72 7000+140 × 7000+140 × 7800 4500 55 8607 25607 300×2 300×2 80×2 80×2 50×2
SCT-457014UG 1005 77 7000+140 × 7000+140 × 8400 4500 30 8650 25650 300×2 300×2 80×2 80×2 50×2
SCT-457015UG 1105 77 7000+140 × 7000+140 × 8400 4500 45 8809 25809 300×2 300×2 80×2 80×2 50×2
SCT-457016UG 1205 77 7000+140 × 7000+140 × 8400 4500 55 8978 25978 300×2 300×2 80×2 80×2 50×2
SCT-457511UG 1000 72 7500+140 × 7500+140 × 7800 4500 30 8968 28468 300×2 300×2 80×2 80×2 50×2
SCT-457512UG 1100 72 7500+140 × 7500+140 × 7800 4500 45 9127 28627 300×2 300×2 80×2 80×2 50×2
SCT-457513UG 1200 72 7500+140 × 7500+140 × 7800 4500 55 9296 28796 300×2 300×2 80×2 80×2 50×2
SCT-457514UG 1120 77 7500+140 × 7500+140 × 8400 4500 30 9392 28892 300×2 300×2 80×2 80×2 50×2
SCT-457515UG 1230 77 7500+140 × 7500+140 × 8400 4500 45 9551 29051 300×2 300×2 80×2 80×2 50×2
SCT-457516UG 1340 77 7500+140 × 7500+140 × 8400 4500 55 9720 29220 300×2 300×2 80×2 80×2 50×2

Sound and drift data available on request for the selected model.

Published Selection Basis

  • Inlet water temperature: 37°C
  • Outlet water temperature: 32°C
  • Wet-bulb temperature: 28°C
  • Atmospheric pressure: 99,400 Pa
  • Water temperature drop: 5°C

Engineering Information Required

Send design flow, entering and leaving water temperatures, design wet-bulb temperature, installation altitude, circulating-water quality, noise target, power supply and footprint limits. Apex will confirm the final model, cell quantity, materials, motor configuration, piping and delivery scope.

Get a Quote

Our commitments

Reply within 24 hours; quotation within 2–3 working days.

Warranty: 16 months from shipment or 12 months from commissioning, whichever comes first.

Third-party inspection and factory witness testing welcome.

Designed per CTI methods; CTI-certified manufacturing available on request (project-specific documentation).

Frequently Asked Questions

Are your towers CTI certified?

Our towers are designed per CTI methods. If your specification requires CTI-certified equipment, tell us at RFQ stage: for eligible series we provide project-specific CTI documentation from the manufacturing partner with the quotation.

What warranty do you offer?

16 months from shipment or 12 months from commissioning, whichever comes first.

Can we inspect before shipment?

Yes. Third-party inspection and factory witness testing are welcome, by appointment.

How fast will we get a quotation?

We reply within 24 hours and send a quotation within 2–3 working days once we have your duty data.

Get a Quote

Additional information

Series

SCT
Circuit

Open circuit
Flow arrangement

Counterflow
Construction

Steel
