SCT III Steel Counterflow Tower

Price by engineering quotation
Get a Quote

SCT III steel counterflow tower for industrial heat rejection. Get a Quote

SKU: APEX-SCT-STEEL-III
Category: , , ,

Description

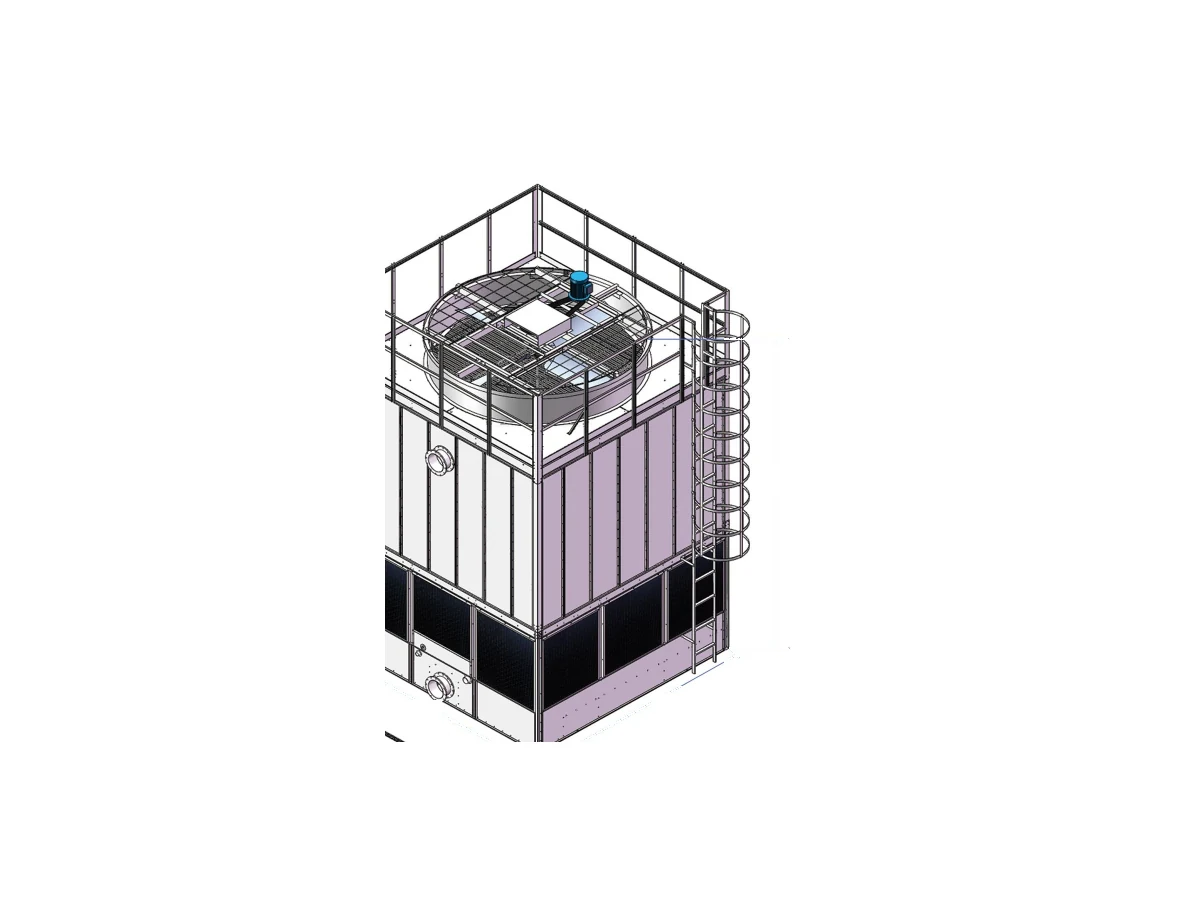

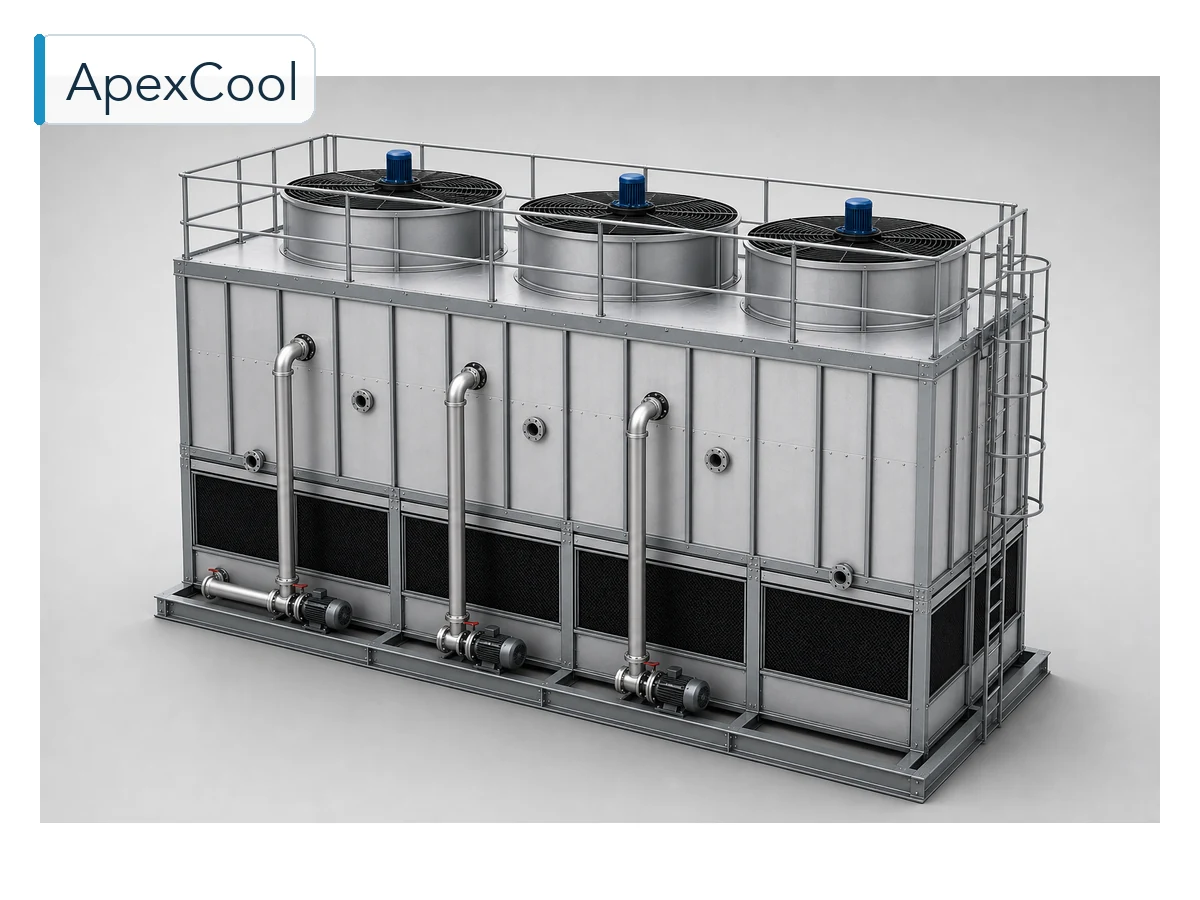

SCT Type III Steel Counterflow Open Circuit Cooling Tower is a counterflow, open circuit cooling tower family with industrial steel construction. It is configured against project water temperatures, wet-bulb conditions, water quality, noise limits and site constraints.

Get a Quote

Complete Model Specifications

All 120 catalog models below were transcribed from the Apex product brochure and assigned to this product family. Scroll horizontally on smaller screens. Final project selection remains subject to thermal and site verification.

120 catalog models in this product family.

Published catalog ratings at 37 °C hot water / 32 °C cold water / 28 °C wet-bulb, 99.4 kPa. Other duties require engineering re-selection.

Model Flow (m³/h) Head (kPa) Dimensions (mm) Fan Ø (mm) Motor (kW) Net weight (kg) Operating weight (kg) Inlet DN Outlet DN Overflow DN Drain DN Makeup DN
SCT-152011LG 80 50 2050+140 × 2050+140 × 4050 1450 2.2 998 2000 125 125 50 50 25
SCT-152012LG 88 50 2050+140 × 2050+140 × 4050 1450 3 1013 2016 125 125 50 50 25
SCT-152013LG 96 50 2050+140 × 2050+140 × 4050 1450 4 1061 2063 125 125 50 50 25
SCT-152014LG 89 54 2050+140 × 2050+140 × 4450 1450 2.2 1082 2084 125 125 50 50 25
SCT-152015LG 98 54 2050+140 × 2050+140 × 4450 1450 3 1097 2100 125 125 50 50 25
SCT-152016LG 108 54 2050+140 × 2050+140 × 4450 1450 4 1145 2147 125 125 50 50 25
SCT-152111LG 90 50 2100+140 × 2100+140 × 4050 1450 3 1050 2103 125 125 50 50 25
SCT-152112LG 99 50 2100+140 × 2100+140 × 4050 1450 4 1092 2145 125 125 50 50 25
SCT-152113LG 107 50 2100+140 × 2100+140 × 4050 1450 5.5 1097 2150 125 125 50 50 25
SCT-152114LG 101 54 2100+140 × 2100+140 × 4450 1450 3 1134 2187 125 125 50 50 25
SCT-152115LG 111 54 2100+140 × 2100+140 × 4450 1450 4 1176 2229 125 125 50 50 25
SCT-152116LG 119 54 2100+140 × 2100+140 × 4450 1450 5.5 1181 2234 125 125 50 50 25
SCT-182211LG 100 52 2250+140 × 2250+140 × 4070 1800 4 1103 2255 125 125 50 50 25
SCT-182212LG 110 52 2250+140 × 2250+140 × 4070 1800 5.5 1124 2276 125 125 50 50 25
SCT-182213LG 120 52 2250+140 × 2250+140 × 4070 1800 7.5 1134 2287 125 125 50 50 25
SCT-182214LG 112 56 2250+140 × 2250+140 × 4470 1800 4 1092 2345 125 125 50 50 25
SCT-182215LG 123 56 2250+140 × 2250+140 × 4470 1800 5.5 1113 2366 150 150 50 50 25
SCT-182216LG 134 56 2250+140 × 2250+140 × 4470 1800 7.5 1124 2376 150 150 50 50 25
SCT-212511LG 125 52 2500+140 × 2500+140 × 4170 2100 5.5 1313 3086 150 150 50 50 25
SCT-212512LG 137 52 2500+140 × 2500+140 × 4170 2100 7.5 1323 3096 150 150 50 50 25
SCT-212513LG 148 52 2500+140 × 2500+140 × 4170 2100 11 1376 3149 150 150 50 50 25
SCT-212514LG 138 56 2500+140 × 2500+140 × 4570 2100 5.5 1418 3191 150 150 50 50 25
SCT-212515LG 153 56 2500+140 × 2500+140 × 4570 2100 7.5 1428 3201 150 150 50 50 25
SCT-212516LG 162 56 2500+140 × 2500+140 × 4570 2100 11 1481 3254 150 150 50 50 25
SCT-212711LG 150 55 2750+140 × 2750+140 × 4370 2100 5.5 1491 3695 150 150 50 50 25
SCT-212712LG 165 55 2750+140 × 2750+140 × 4370 2100 7.5 1502 3705 150 150 50 50 25
SCT-212713LG 180 55 2750+140 × 2750+140 × 4370 2100 11 1554 3768 200 200 50 50 25
SCT-212714LG 167 59 2750+140 × 2750+140 × 4770 2100 5.5 1596 3800 150 150 50 50 25
SCT-212715LG 184 59 2750+140 × 2750+140 × 4770 2100 7.5 1607 3810 200 200 50 50 25
SCT-212716LG 201 59 2750+140 × 2750+140 × 4770 2100 11 1659 3863 200 200 50 50 25
SCT-243011LG 175 55 3000+140 × 3000+140 × 4370 2400 5.5 1680 4384 200 200 50 50 25
SCT-243012LG 192 55 3000+140 × 3000+140 × 4370 2400 7.5 1691 4395 200 200 50 50 25
SCT-243013LG 208 55 3000+140 × 3000+140 × 4370 2400 11 1743 4447 200 200 50 50 25
SCT-243014LG 196 59 3000+140 × 3000+140 × 4770 2400 5.5 1785 4489 200 200 50 50 25
SCT-243015LG 213 59 3000+140 × 3000+140 × 4770 2400 7.5 1796 4500 200 200 50 50 25
SCT-243016LG 230 59 3000+140 × 3000+140 × 4770 2400 11 1848 4552 200 200 50 50 25
SCT-243211LG 200 55 3250+140 × 3250+140 × 4370 2400 7.5 1838 4842 200 200 50 50 25
SCT-243212LG 220 55 3250+140 × 3250+140 × 4370 2400 11 1880 4884 200 200 50 50 25
SCT-243213LG 240 55 3250+140 × 3250+140 × 4370 2400 15 1901 4905 250 250 50 50 25
SCT-243214LG 224 59 3250+140 × 3250+140 × 4770 2400 7.5 1964 4968 200 200 50 50 25
SCT-243215LG 245 59 3250+140 × 3250+140 × 4770 2400 11 2006 5010 250 250 50 50 25
SCT-243216LG 265 59 3250+140 × 3250+140 × 4770 2400 15 2027 5031 250 250 50 50 25
SCT-263411LG 225 55 3400+140 × 3400+140 × 4370 2600 7.5 1995 5400 200 200 50 50 25
SCT-263412LG 247 55 3400+140 × 3400+140 × 4370 2600 11 2037 5442 250 250 50 50 25
SCT-263413LG 270 55 3400+140 × 3400+140 × 4370 2600 15 2058 5463 250 250 50 50 25
SCT-263414LG 252 59 3400+140 × 3400+140 × 4770 2600 7.5 2121 5526 250 250 50 50 25
SCT-263415LG 273 59 3400+140 × 3400+140 × 4770 2600 11 2163 5568 250 250 50 50 25
SCT-263416LG 302 59 3400+140 × 3400+140 × 4770 2600 15 2184 5589 250 250 50 50 25
SCT-283511LG 250 56 3500+140 × 3500+140 × 5070 2800 7.5 2258 5913 250 250 80 80 40
SCT-283512LG 275 56 3500+140 × 3500+140 × 5070 2800 11 2300 5955 250 250 80 80 40
SCT-283513LG 295 56 3500+140 × 3500+140 × 5070 2800 15 2321 5976 250 250 80 80 40
SCT-283514LG 280 62 3500+140 × 3500+140 × 5670 2800 7.5 2384 6039 250 250 80 80 40
SCT-283515LG 305 62 3500+140 × 3500+140 × 5670 2800 11 2426 6081 250 250 80 80 40
SCT-283516LG 325 62 3500+140 × 3500+140 × 5670 2800 15 2447 6102 250 250 80 80 40
SCT-304011LG 300 56 4000+140 × 4000+140 × 5170 3000 11 2751 7558 250 250 80 80 40
SCT-304012LG 330 56 4000+140 × 4000+140 × 5170 3000 15 2793 7600 250 250 80 80 40
SCT-304013LG 360 56 4000+140 × 4000+140 × 5170 3000 18.5 2835 7642 250 250 80 80 40
SCT-304014LG 335 62 4000+140 × 4000+140 × 5770 3000 11 2961 7768 250 250 80 80 40
SCT-304015LG 365 62 4000+140 × 4000+140 × 5770 3000 15 3003 7810 250 250 80 80 40
SCT-304016LG 395 62 4000+140 × 4000+140 × 5770 3000 18.5 3045 7952 250 250 80 80 40
SCT-324211LG 350 60 4250+140 × 4250+140 × 5370 3200 11 3098 8405 250 250 80 80 40
SCT-324212LG 385 60 4250+140 × 4250+140 × 5370 3200 15 3140 8447 250 250 80 80 40
SCT-324213LG 420 60 4250+140 × 4250+140 × 5370 3200 18.5 3182 8489 250 250 80 80 40
SCT-324214LG 390 66 4250+140 × 4250+140 × 5940 3200 11 3308 8615 250 250 80 80 40
SCT-324215LG 430 66 4250+140 × 4250+140 × 5940 3200 15 3350 8657 250 250 80 80 40
SCT-324216LG 465 66 4250+140 × 4250+140 × 5940 3200 18.5 3392 8700 300 300 80 80 40
SCT-324511LG 380 60 4500+140 × 4500+140 × 5370 3200 11 3444 9452 250 250 80 80 40
SCT-324512LG 418 60 4500+140 × 4500+140 × 5370 3200 15 3486 9494 250 250 80 80 40
SCT-324513LG 455 60 4500+140 × 4500+140 × 5370 3200 18.5 3528 9536 300 300 80 80 40
SCT-324514LG 425 66 4500+140 × 4500+140 × 5970 3200 11 3675 9684 250 250 80 80 40
SCT-324515LG 468 66 4500+140 × 4500+140 × 5970 3200 15 3717 9726 300 300 80 80 40
SCT-324516LG 508 66 4500+140 × 4500+140 × 5970 3200 18.5 3759 9768 300 300 80 80 40
SCT-345011LG 400 60 5000+140 × 5000+140 × 5370 3400 15 3696 11205 250 250 80 80 40
SCT-345012LG 440 60 5000+140 × 5000+140 × 5370 3400 18.5 3738 11247 250 250 80 80 40
SCT-345013LG 480 60 5000+140 × 5000+140 × 5370 3400 22 3749 11257 300 300 80 80 40
SCT-345014LG 445 66 5000+140 × 5000+140 × 5970 3400 15 3959 11468 250 250 80 80 40
SCT-345015LG 490 66 5000+140 × 5000+140 × 5970 3400 18.5 4001 11510 300 300 80 80 40
SCT-345016LG 535 66 5000+140 × 5000+140 × 5970 3400 22 4011 11521 300 300 80 80 40
SCT-375111LG 450 60 5100+140 × 5100+140 × 5520 3700 15 4011 13001 300 300 80 80 50
SCT-375112LG 495 60 5100+140 × 5100+140 × 5520 3700 18.5 4053 13043 300 300 80 80 50
SCT-375113LG 540 60 5100+140 × 5100+140 × 5520 3700 22 4064 13053 300 300 80 80 50
SCT-375114LG 505 66 5100+140 × 5100+140 × 6120 3700 15 4274 13264 300 300 80 80 50
SCT-375115LG 553 66 5100+140 × 5100+140 × 6120 3700 18.5 4316 13306 300 300 80 80 50
SCT-375116LG 603 66 5100+140 × 5100+140 × 6120 3700 22 4326 13316 300 300 80 80 50
SCT-375211LG 500 63 5250+140 × 5250+140 × 5720 3700 15 4358 13768 300 300 80 80 50
SCT-375212LG 550 63 5250+140 × 5250+140 × 5720 3700 18.5 4400 13810 300 300 80 80 50
SCT-375213LG 595 63 5250+140 × 5250+140 × 5720 3700 22 4410 13821 300 300 80 80 50
SCT-375214LG 560 69 5250+140 × 5250+140 × 6320 3700 15 4641 14052 300 300 80 80 50
SCT-375215LG 615 69 5250+140 × 5250+140 × 6320 3700 18.5 4683 14094 300 300 80 80 50
SCT-375216LG 665 69 5250+140 × 5250+140 × 6320 3700 22 4694 14105 300 300 80 80 50
SCT-405511LG 600 68 5500+140 × 5500+140 × 6750 4000 18.5 4914 15426 300 300 80 80 50
SCT-405512LG 660 68 5500+140 × 5500+140 × 6750 4000 22 4930 15441 300 300 80 80 50
SCT-405513LG 720 68 5500+140 × 5500+140 × 6750 4000 30 4967 15478 350 350 80 80 50
SCT-405514LG 670 73 5500+140 × 5500+140 × 7350 4000 18.5 5187 15699 300 300 80 80 50
SCT-405515LG 735 73 5500+140 × 5500+140 × 7350 4000 22 5203 15715 350 350 80 80 50
SCT-405516LG 805 73 5500+140 × 5500+140 × 7350 4000 30 5240 15752 350 350 80 80 50
SCT-426011LG 700 68 6000+140 × 6000+140 × 6750 4200 22 5922 18536 350 350 80 80 50
SCT-426012LG 770 68 6000+140 × 6000+140 × 6750 4200 30 5964 18578 350 350 80 80 50
SCT-426013LG 840 68 6000+140 × 6000+140 × 6750 4200 45 6132 18747 400 400 80 80 50
SCT-426014LG 780 73 6000+140 × 6000+140 × 7350 4200 22 6237 18852 350 350 80 80 50
SCT-426015LG 860 73 6000+140 × 6000+140 × 7350 4200 30 6279 18894 400 400 80 80 50
SCT-426016LG 935 73 6000+140 × 6000+140 × 7350 4200 45 6447 19062 400 400 80 80 50
SCT-426511LG 800 70 6500+140 × 6500+140 × 6950 4200 22 6846 21362 350 350 80 80 50
SCT-426512LG 880 70 6500+140 × 6500+140 × 6950 4200 30 6888 21404 400 400 80 80 50
SCT-426513LG 960 70 6500+140 × 6500+140 × 6950 4200 45 7056 21573 400 400 80 80 50
SCT-426514LG 895 75 6500+140 × 6500+140 × 7550 4200 22 7182 21699 400 400 80 80 50
SCT-426515LG 985 75 6500+140 × 6500+140 × 7550 4200 30 7224 21741 400 400 80 80 50
SCT-426516LG 1070 75 6500+140 × 6500+140 × 7550 4200 45 7434 21912 400 400 80 80 50
SCT-457011LG 900 72 7000+140 × 7000+140 × 6950 4500 30 7928 24946 300×2 300×2 80×2 80×2 50×2
SCT-457012LG 990 72 7000+140 × 7000+140 × 6950 4500 45 8085 25104 300×2 300×2 80×2 80×2 50×2
SCT-457013LG 1080 72 7000+140 × 7000+140 × 6950 4500 55 8253 25273 300×2 300×2 80×2 80×2 50×2
SCT-457014LG 1005 77 7000+140 × 7000+140 × 7550 4500 30 8295 25315 300×2 300×2 80×2 80×2 50×2
SCT-457015LG 1105 77 7000+140 × 7000+140 × 7550 4500 45 8453 25473 300×2 300×2 80×2 80×2 50×2
SCT-457016LG 1205 77 7000+140 × 7000+140 × 7550 4500 55 8621 25641 300×2 300×2 80×2 80×2 50×2
SCT-457511LG 1000 72 7500+140 × 7500+140 × 6950 4500 30 8610 28131 300×2 300×2 80×2 80×2 50×2
SCT-457512LG 1100 72 7500+140 × 7500+140 × 6950 4500 45 8768 28288 300×2 300×2 80×2 80×2 50×2
SCT-457513LG 1200 72 7500+140 × 7500+140 × 6950 4500 55 8936 28457 300×2 300×2 80×2 80×2 50×2
SCT-457514LG 1120 77 7500+140 × 7500+140 × 7550 4500 30 9030 28552 300×2 300×2 80×2 80×2 50×2
SCT-457515LG 1230 77 7500+140 × 7500+140 × 7550 4500 45 9188 28709 300×2 300×2 80×2 80×2 50×2
SCT-457516LG 1340 77 7500+140 × 7500+140 × 7550 4500 55 9356 28878 300×2 300×2 80×2 80×2 50×2

Sound and drift data available on request for the selected model.

Published Selection Basis

  • Inlet water temperature: 37°C
  • Outlet water temperature: 32°C
  • Wet-bulb temperature: 28°C
  • Atmospheric pressure: 99,400 Pa
  • Water temperature drop: 5°C

Engineering Information Required

Send design flow, entering and leaving water temperatures, design wet-bulb temperature, installation altitude, circulating-water quality, noise target, power supply and footprint limits. Apex will confirm the final model, cell quantity, materials, motor configuration, piping and delivery scope.

Get a Quote

Our commitments

Reply within 24 hours; quotation within 2–3 working days.

Warranty: 16 months from shipment or 12 months from commissioning, whichever comes first.

Third-party inspection and factory witness testing welcome.

Designed per CTI methods; CTI-certified manufacturing available on request (project-specific documentation).

Frequently Asked Questions

Are your towers CTI certified?

Our towers are designed per CTI methods. If your specification requires CTI-certified equipment, tell us at RFQ stage: for eligible series we provide project-specific CTI documentation from the manufacturing partner with the quotation.

What warranty do you offer?

16 months from shipment or 12 months from commissioning, whichever comes first.

Can we inspect before shipment?

Yes. Third-party inspection and factory witness testing are welcome, by appointment.

How fast will we get a quotation?

We reply within 24 hours and send a quotation within 2–3 working days once we have your duty data.

Get a Quote

Additional information

Series

SCT
Circuit

Open circuit
Flow arrangement

Counterflow
Construction

Steel
